Propeller Shaft

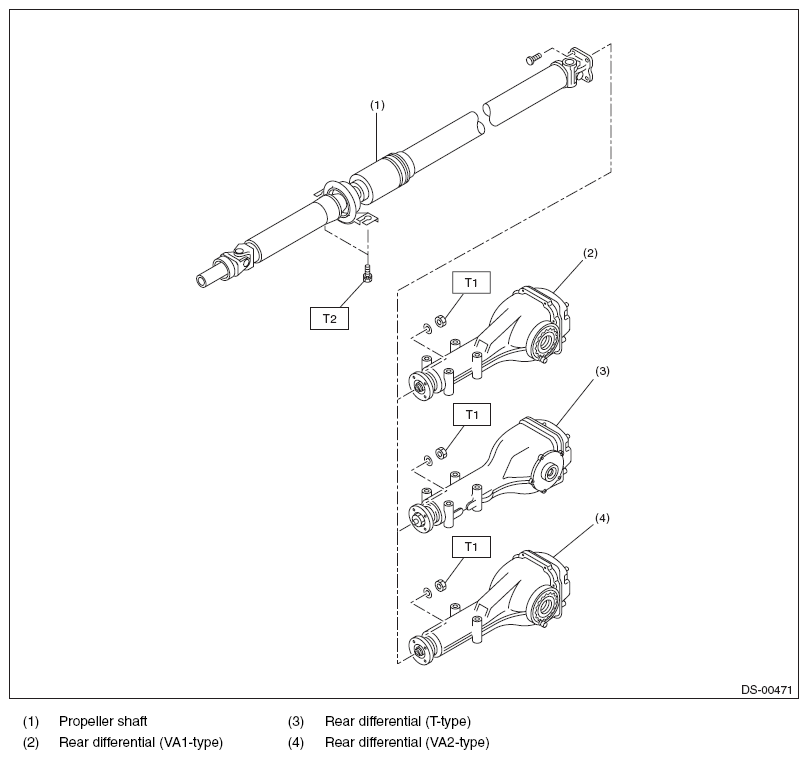

Fig 1: Identifying Propeller Shaft Components

G07914059

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 31 (3.16, 22.9)

T2: 52 (5.3, 38.4)
