Rear Axle

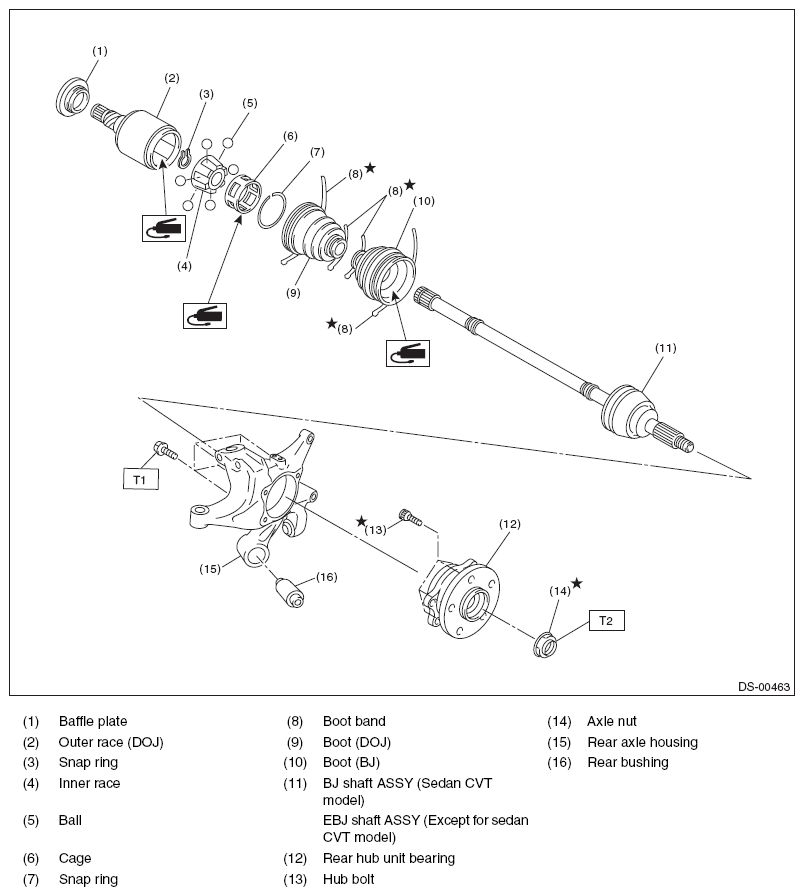

Fig 1: Exploded View Of Rear Axle Shaft

G07914061

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 65 (6.63, 47.9)

T2: 240 (24.47, 177.0)
