Under-Dash Fuse/Relay Box

Under-dash fuse/relay box is located under the instrument panel behind the fuse box cover on driver's side, see illustration below.

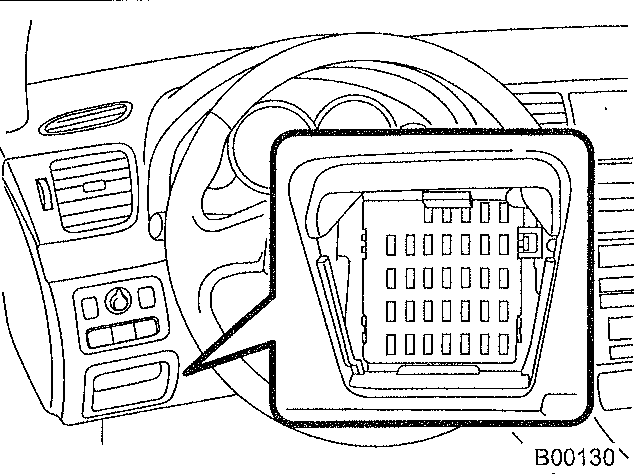

Fig 1: Locating Under-Dash Fuse/Relay Box

Courtesy of SUBARU OF AMERICA, INC.

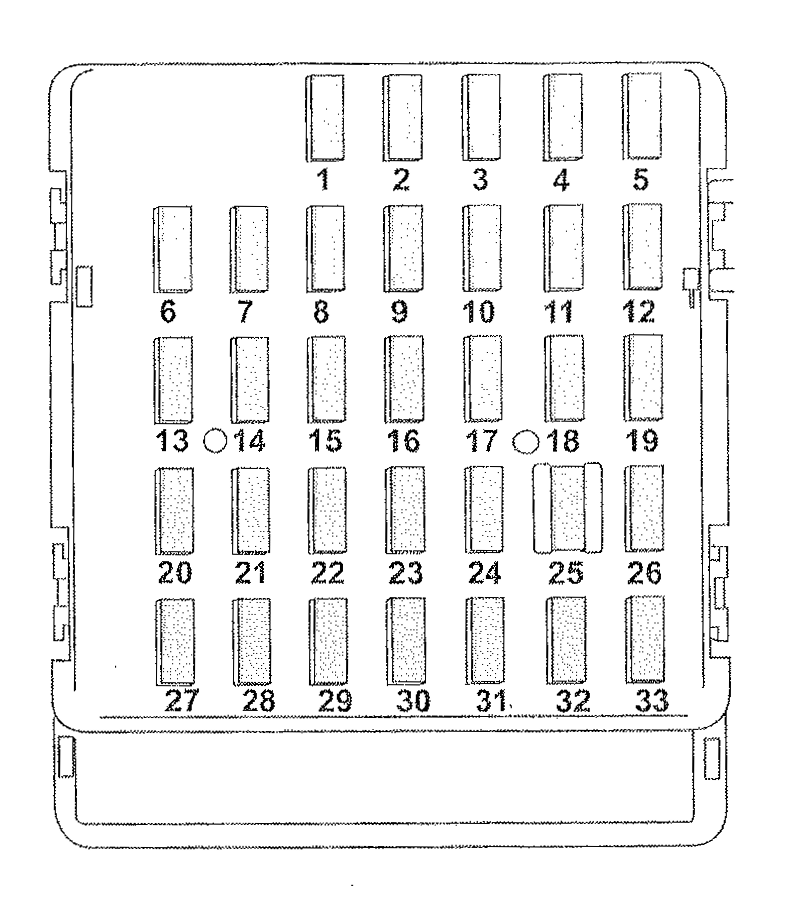

Fig 2: Identifying Under-Dash Fuse/Relay Box

Courtesy of SUBARU OF AMERICA, INC.

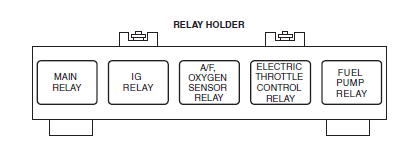

Fig 3: Identifying Under-Dash Relay Holder

Courtesy of SUBARU OF AMERICA, INC.
