Relay and Fuse: Location

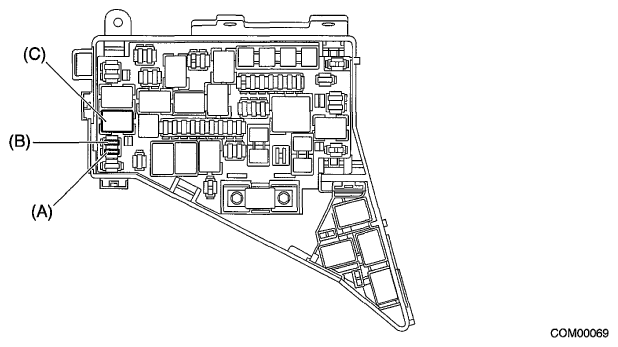

Fig 1: Identifying Relay And Fuse Location
G06653667Courtesy of SUBARU OF AMERICA, INC.
Main fuse box Fuse 7.5A (Hi pitch (RH) side horn) (A)
Fuse 7.5A (Lo pitch (LH) side horn) (B)
HORN RELAY (C)
NOTE: For other related fuses, refer to the wiring diagram. Refer to SYSTEM WIRING DIAGRAMS , or SYSTEM WIRING DIAGRAMS .
