Rear Entertainment: Installation

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align a temporary clip (A) to the protrusion (C) using a temporary screw (B), and attach to the rear entertainment system body.

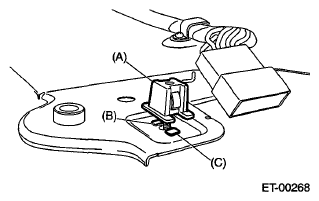

    Fig 1: Temporary Clip, Protrusion And Temporary Screw
    G06341209Courtesy of SUBARU OF AMERICA, INC.
    NOTE: When installing a new rear entertainment system, a clip is supplied on the unit, and step  1) can be omitted.
  2. Place the hook of the rear entertainment unit on the roof brace section.
  3. Affix the temporary fixture clips on the roof brace.
  4. Tighten the 4 attachment bolts, and connect the connector.
  5. Connect the room light connector, attach the cover and affix with the bolts.
  6. Attach the room light lens from the outside of the vehicle and snap into place.
