Front Disc Brake Assembly: Disassembly

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove mud and foreign matter from the caliper body assembly and the support.
    CAUTION: Be careful not to allow foreign matter to enter the brake hose connector.
  2. Place a wooden block in the caliper body as shown in the figure to prevent the piston from jumping out and being damaged.
  3. Gradually apply compressed air via the brake hose installation hole to push the piston out.

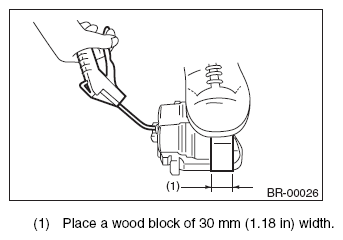

    Fig 1: Applying Compressed Air Via Brake Hose Installation Hole To Push Piston Out
    G07926106Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the piston boot.
    Fig 2: Removing Piston Boot
    G05032768Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the piston seal from caliper body cylinder.
    CAUTION: Do not damage the cylinder and piston seal groove.

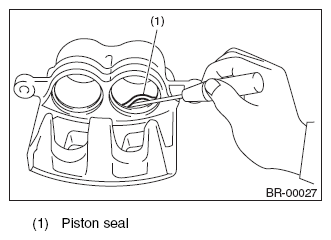

    Fig 3: Removing Piston Seal From Caliper Body Cylinder
    G07926108Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the guide pin and boot from caliper body.
