Check Specified Position

WARNING: This page is about a different car, the 2011 Subaru Tribeca. However, it is still accessible from the selected car via links, so may be relevant.

If the stop light switch does not operate properly (or if it is not secured at the specified position), replace with a new part.
Specified position L:

2 mm (0.079 in)

Fig 1: Identifying Stop Light Switch Specified Position L
Courtesy of SUBARU OF AMERICA, INC.
Measure the clearance between the threaded end of the stop light switch and the stopper.
CAUTION: Be careful not to rotate the stop light switch.

Stop light switch clearance A:

0.8 mm (0.031 in)

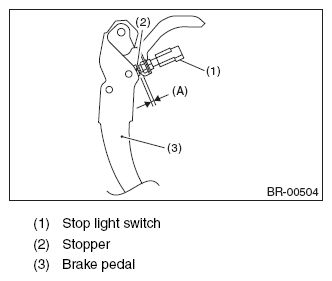

Fig 2: Measuring Clearance Between Threaded End Of Stop Light Switch And Stopper
Courtesy of SUBARU OF AMERICA, INC.
If it is not within the specification, adjust it by adjusting the position of the stop light switch.

CAUTION: Be careful not to rotate the stop light switch.
