Rear Bushing

1. Put an alignment mark on the front arm based on the center of rear bushing recess portion.
   CAUTION: Always put an alignment mark for aligning the position on bushing installation.

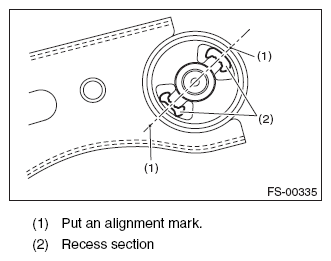

   Fig 1: Identifying Alignment Mark On Front Arm

   Courtesy of SUBARU OF AMERICA, INC.
2. Using the ST and a press, remove the rear bushing.

PREPARATION TOOL:

ST1: REMOVER (20299AG000)

ST2: BASE (20299AG010)

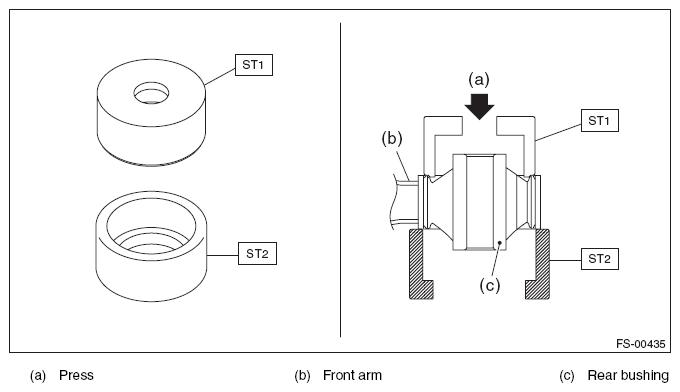

Fig 2: Removing Rear Bushing Using ST

Courtesy of SUBARU OF AMERICA, INC.
