Master Cylinder: Installation

Install the master cylinder to the pedal assembly.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

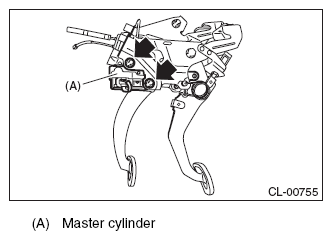

Fig 1: Identifying Master Cylinder With Nuts
Courtesy of SUBARU OF AMERICA, INC.
Connect the clutch pipes to the master cylinder.
Tightening torque:

15 N.m (1.5 kgf-m, 11.1 ft-lb)

Fig 2: Locating Clutch Pipe Nuts
Courtesy of SUBARU OF AMERICA, INC.
Connect the clutch stroke sensor connector.
Connect the push rod of the master cylinder to the clutch pedal, and install the clevis pin and clip.
CAUTION: Always use a new clevis pin.

NOTE: Apply grease to the clevis pin.

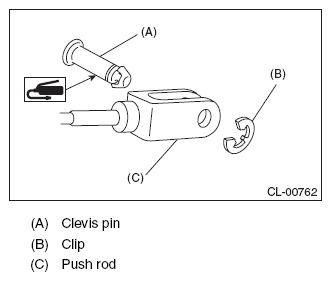

Fig 3: Identifying Grease Applying Area On Clevis Pin
Courtesy of SUBARU OF AMERICA, INC.
Install the pedal assembly. Refer to INSTALLATION .
Install the instrument panel lower cover. Refer to INSTRUMENT PANEL LOWER COVER .
Connect the battery ground terminal.
Fill the recommended clutch fluid. Refer to Clutch Fluid .
After bleeding air from the clutch system, ensure that the clutch operates properly. Refer to Clutch Fluid Air Bleeding .
Install the collector cover. (turbo model)
When the clutch master cylinder assembly has been replaced, perform the clutch sensor calibration mode. Refer to CLUTCH SENSOR CALIBRATION MODE .

NOTE: If necessary, perform the clutch meet position setting. Refer to CLUTCH ENGAGEMENT POSITION SETTING .
