Operating Cylinder: Removal

NOTE: The illustration below is suitable for every model. Perform the same procedures for the other models.
  1. Remove the collector cover. (turbo model)
  2. Remove the air intake boot assembly. (non-turbo model) Refer to AIR INTAKE BOOT .
  3. Remove the intercooler. (turbo model) Refer to INTERCOOLER .
  4. Disconnect the clutch hose from the operating cylinder.
    CAUTION:
    • Cover the hose joint to prevent the clutch fluid from flowing out.
    • Do not loosen or remove the cap bolt at the rear end of operating cylinder. (turbo model)

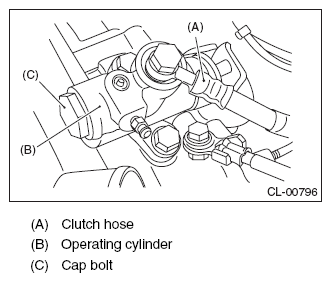

    Fig 1: Identifying Clutch Hose, Cap Bolt And Operating Cylinder
    G07913864Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the operating cylinder from the transmission.

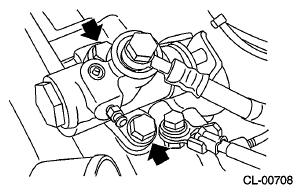

Fig 2: Locating Operating Cylinder Bolts
G06652531Courtesy of SUBARU OF AMERICA, INC.
