Home >> Subaru >> 2012 >> Outback Limited >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Continuously Variable Transmission Diagnostics >> Electrical Component Location >> Location >> Control Module

Control Module

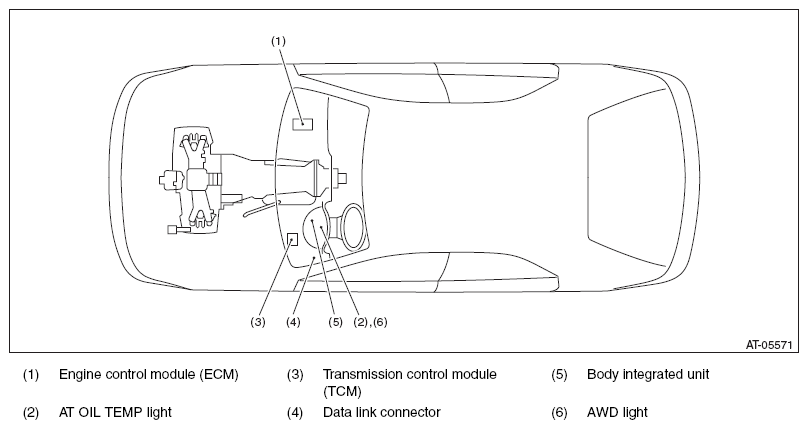

Fig 1: Identifying Control Module Components Location (1 Of 2)
G07913746Courtesy of SUBARU OF AMERICA, INC.

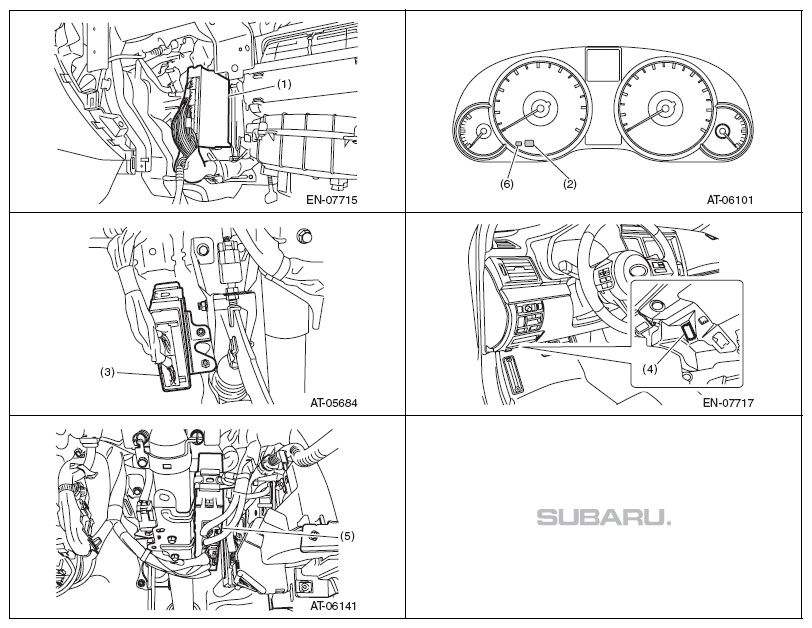

Fig 2: Identifying Control Module Components Location (2 Of 2)
G07913747Courtesy of SUBARU OF AMERICA, INC.
