Home >> Subaru >> 2012 >> Outback R >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - Diagnostics >> Electrical Component Location >> Location >> Sensor

Automatic Transmission - Diagnostics: Electrical Component Location: Location: Sensor

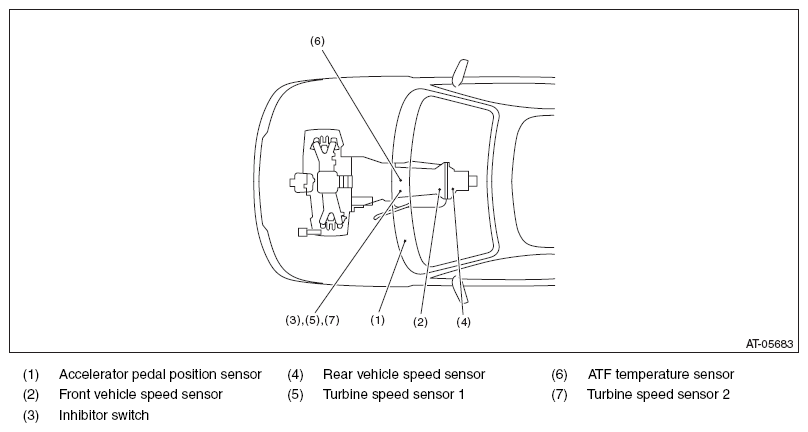

Fig 1: Identifying Sensors (1 Of 2)
G07913793Courtesy of SUBARU OF AMERICA, INC.

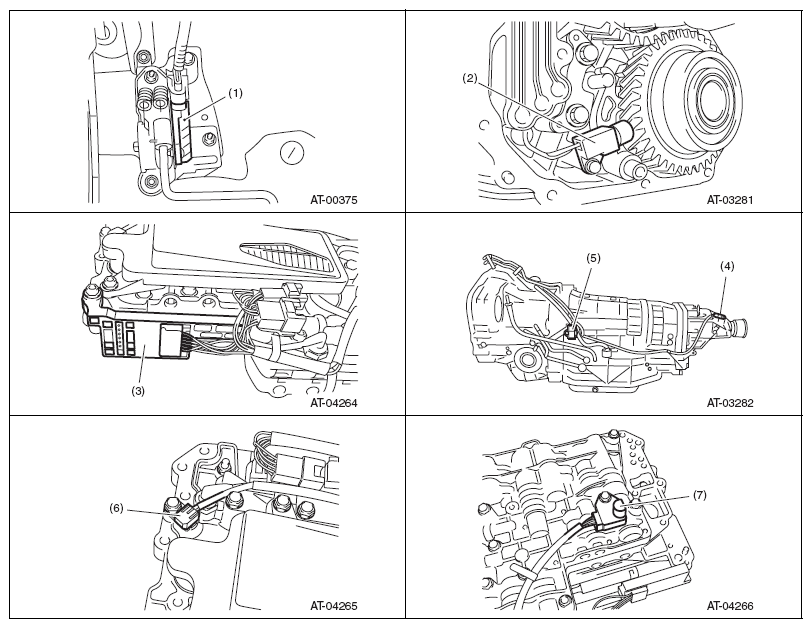

Fig 2: Identifying Sensors (2 Of 2)
G07913794Courtesy of SUBARU OF AMERICA, INC.
