Home >> Subaru >> 2012 >> Tribeca Limited >> Repair and Diagnosis >> Body & Frame >> Windows >> Glass/Windows/Mirrors >> General Description >> Components With Torque Specifications >> Front Door Glass

Front Door Glass

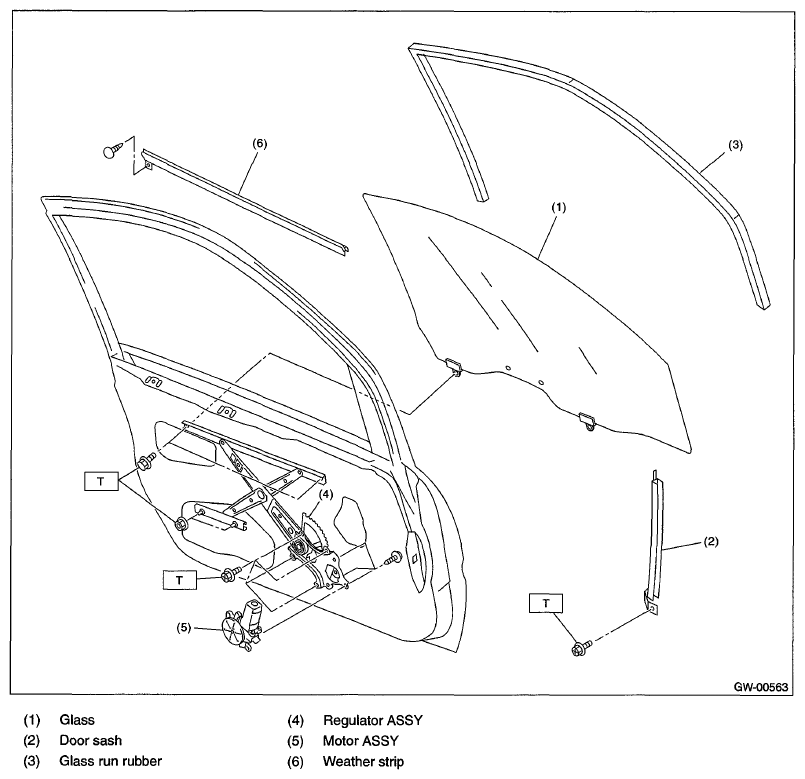

Fig 1: Identifying Front Door Glass Components

G06341219

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.4 (0.75, 5.5)
