Outer Mirror Assembly: Removal

Remove the mirror gusset cover.

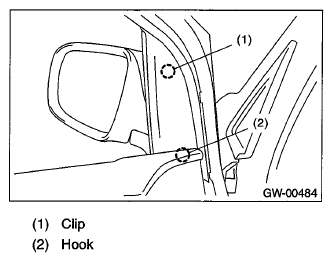

Fig 1: Identifying Mirror Gusset Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the door trim. Refer to REMOVAL , Door Trim.
Disconnect the mirror connector.
Remove the screws to remove outer mirror assembly.

Fig 2: Locating Outer Mirror Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.
Remove the outer mirror assembly. (Model without door visor)
Using the upper part (A) of the mirror assembly as a supporting point, pull it upward while drawing the lower part. (Model with door visor)
CAUTION:
- Do not remove forcibly, otherwise door visor may be damaged.
- Apply protective tape as necessary in order to avoid scratching the door visor and mirror assembly.

  Fig 3: Removing Outer Mirror Assembly
  Courtesy of SUBARU OF AMERICA, INC.
Pull the mirror assembly downward to remove from the vehicle body. (Model with door visor)

Fig 4: Removing Mirror Assembly
Courtesy of SUBARU OF AMERICA, INC.
