Parking Brake: Inspection

Inspect the brake linings and disc rotor of both sides of the rear brake at the same time by removing disc rotor.

1. Inspect the brake shoes for damage or deformation and check the brake linings for wear.
   NOTE: Always replace the primary and secondary brake shoe of right and left wheels at the same time.

   Thickness of brake lining (except for back metal):

   Standard: 4.0 mm (0.157 in)

   Wear limit: 1.5 mm (0.059 in)

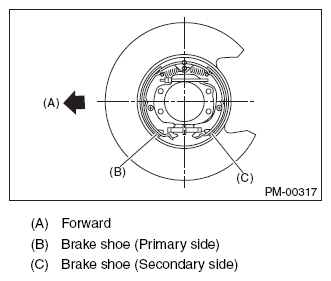

   Fig 1: Identifying Primary Side And Secondary Side Brake Shoes

   Courtesy of SUBARU OF AMERICA, INC.
2. Check the inside of disc rotor for wear, dents or other damage. If the inside surface of dick rotor is streaked, correct the surface with emery cloth (#200 or more). If it is unevenly worn or tapered, correct or replace it.

   Brake drum inside diameter:

   Standard: 210 mm (8.27 in)

   Wear limit: 211 mm (8.31 in)

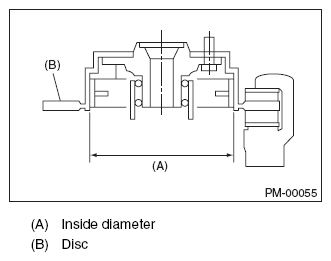

   Fig 2: Identifying Brake Drum Inside Diameter

   Courtesy of SUBARU OF AMERICA, INC.
3. If the deformation or wear of back plate, shoe, etc. is noticeable, replace them.
4. When the shoe return spring tension is excessively weakened, replace it.
5. Check whether the parking brake pedal is at the predetermined number of notches (5 to 6 notches).
