General Information: V-belt: Inspection

1. Replace the belts if cracks, fraying or wear are found.
2. Make sure that the V-belt automatic belt tension indicator (A) is within the range of its use limit (D).

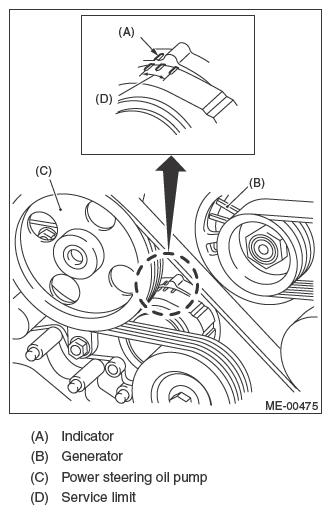

Fig 1: Locating V-Belt Automatic Belt Tension Indicator

Courtesy of SUBARU OF AMERICA, INC.
