Basic Diagnostic Procedure: Procedure

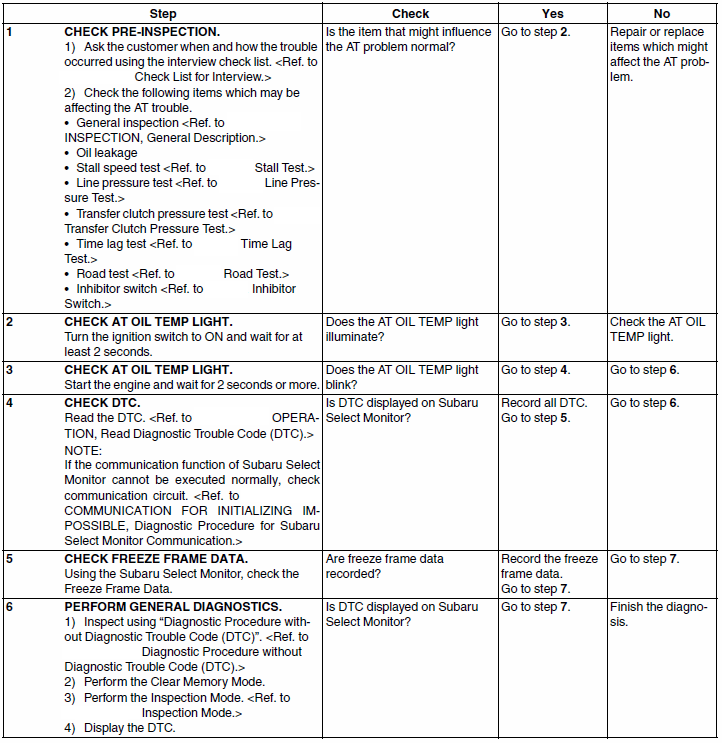

Fig 1: Automatic Transmission Diagnostic Procedure (1 Of 2)
G00510796Courtesy of SUBARU OF AMERICA, INC.

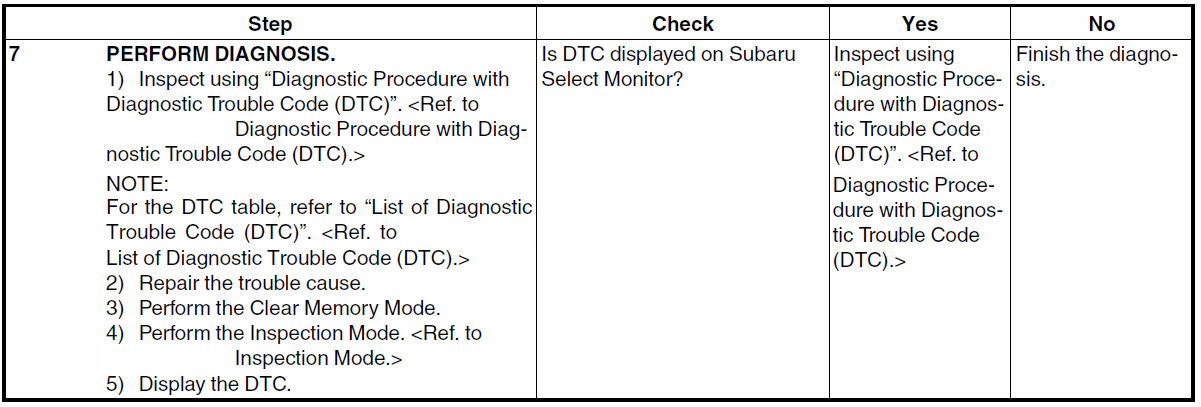

Fig 2: Automatic Transmission Diagnostic Procedure (2 Of 2)
G00510798Courtesy of SUBARU OF AMERICA, INC.
