Home >> Subaru >> 2013 >> Forester X, Automatic Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle - Diagnostics >> Electrical Component Location >> Location >> Control Module

Control Module

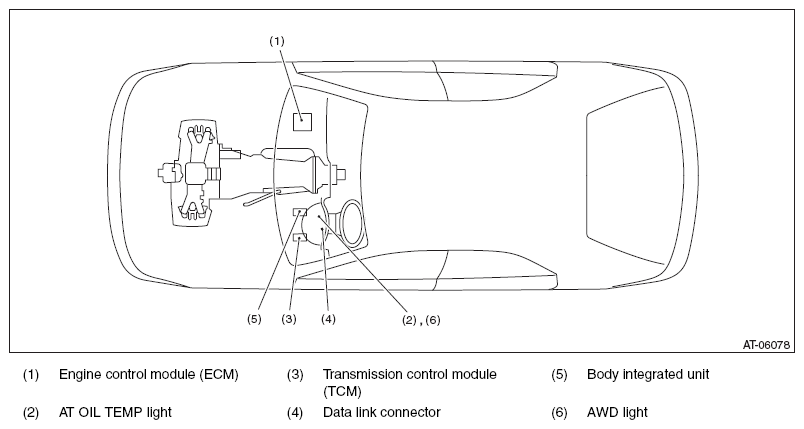

Fig 1: Control Module Electrical Component Location (1 Of 2)
G08564246Courtesy of SUBARU OF AMERICA, INC.

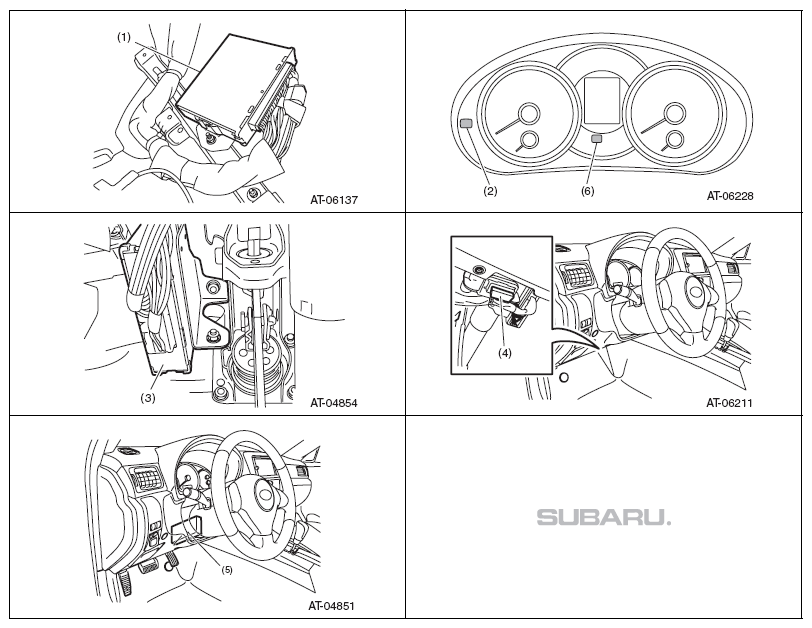

Fig 2: Control Module Electrical Component Location (2 Of 2)
G08564247Courtesy of SUBARU OF AMERICA, INC.
