Inhibitor Switch: Installation

Install the inhibitor switch to the transmission case.

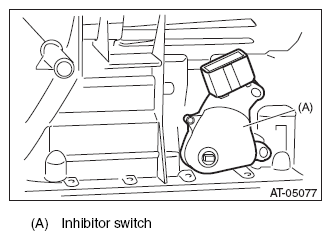

Fig 1: Identifying Transmission Case Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the shifter arm and fix with the spring pin.
NOTE: Use new spring pin.

ST 398791600 REMOVER

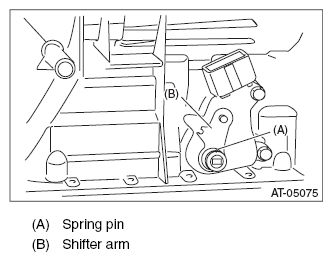

Fig 2: Identifying Spring Pin And Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Move the shifter arm to the neutral position.
Using the ST, tighten the two bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)

ST 499267300 STOPPER PIN

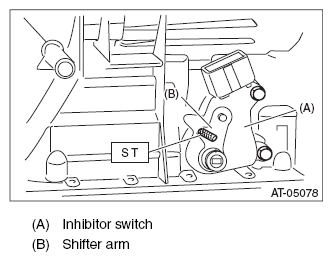

Fig 3: Tightening Inhibitor Switch Mounting Bolts Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Connect the inhibitor switch connector to the inhibitor switch.

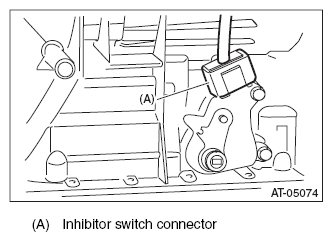

Fig 4: Identifying Inhibitor Switch Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to the shifter arm.
Install the plate assembly to the transmission case.
Tightening torque:

T: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

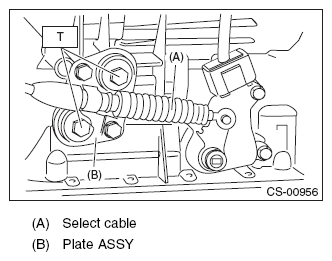

Fig 5: Identifying Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to the shifter arm.

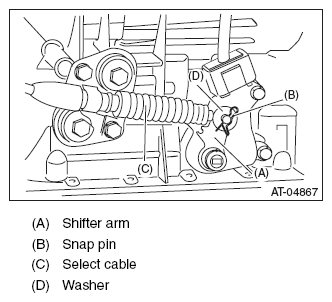

Fig 6: Identifying Shifter Arm, Snap Pin, Select Cable And Washer
Courtesy of SUBARU OF AMERICA, INC.
Install the center exhaust pipe. (non-turbo model) < Refer to INSTALLATION , Center Exhaust Pipe. >
Install the center exhaust pipe. (turbo model) < Refer to INSTALLATION , Center Exhaust Pipe. >
Lower the vehicle.
Connect the battery ground terminal.
Check the inhibitor switch. < Refer to INSPECTION , Inhibitor Switch. >
