Reduction Drive Gear: Installation

  1. Install the reduction drive gear assembly.
    NOTE: Press-fit it to the bottom of bearing shoulder completely.

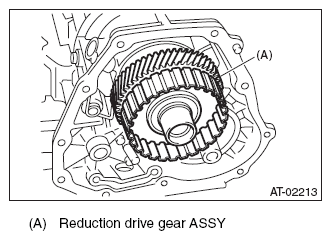

    Fig 1: Identifying Reduction Drive Gear Assembly
    G08564035Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reduction driven gear. < Refer to INSTALLATION , Reduction Driven Gear. >
  3. Connect the transmission case with the extension case. < Refer to INSTALLATION , Extension Case. >
  4. Install the transmission assembly to the vehicle. < Refer to INSTALLATION , Automatic Transmission Assembly. >
