Knock Sensor: Removal

  1. Remove the collector cover.
  2. Disconnect the ground cable from battery.
    Fig 1: Disconnecting/Connecting Battery Ground Cable
    G06336085Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intercooler. < Refer to REMOVAL , Intercooler. >
  4. Disconnect the connector from the knock sensor.

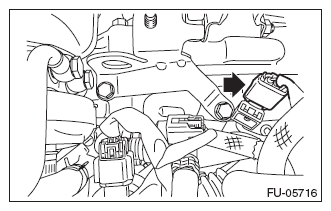

    Fig 2: Locating Knock Sensor Connector
    G08539871Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the knock sensor from cylinder block.

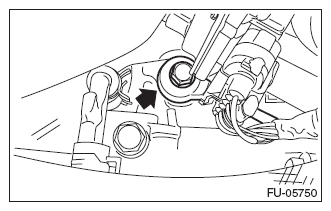

    Fig 3: Locating Knock Sensor Mounting Bolts
    G08539872Courtesy of SUBARU OF AMERICA, INC.
