Forward Clutch Assembly

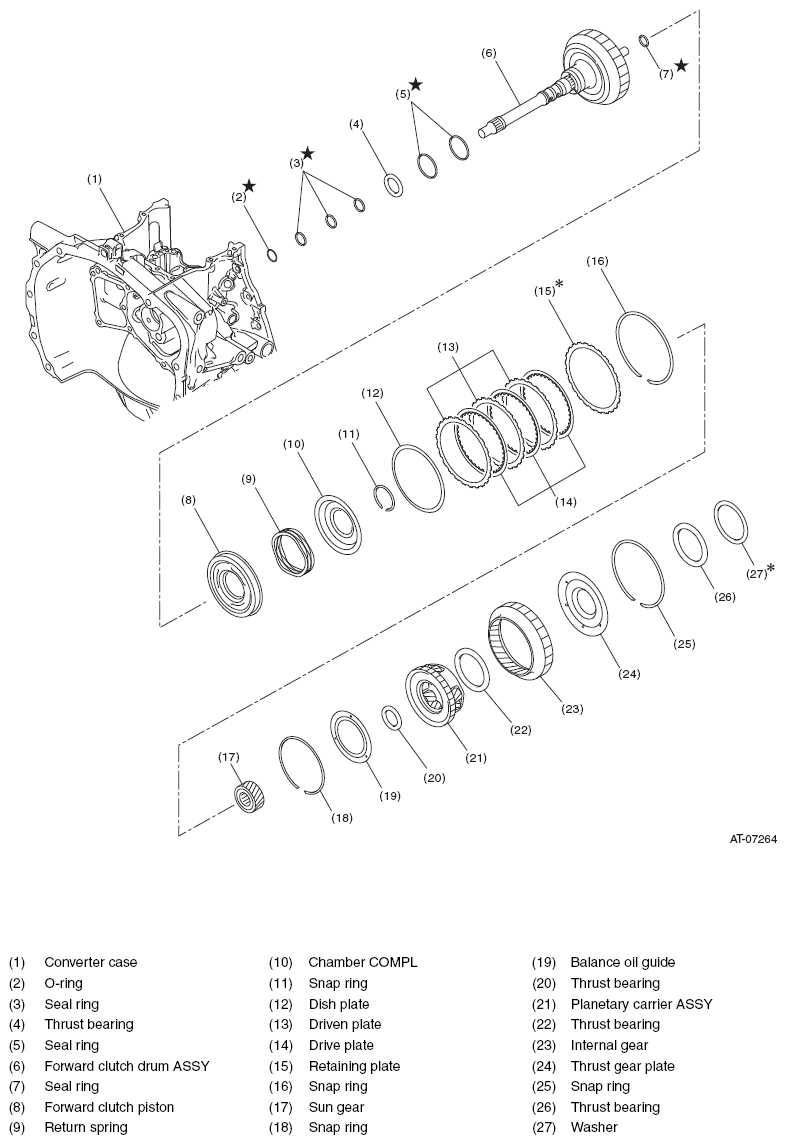

Fig 1: Identifying Forward Clutch Assembly Components
G08578527Courtesy of SUBARU OF AMERICA, INC.
