Home >> Subaru >> 2013 >> Outback Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Engine Ignition System (H4DO) >> Spark Plug >> Removal >> LH Side

LH Side

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery (LH Side)
    G08579605Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from ignition coil.
  3. Remove the ignition coil.

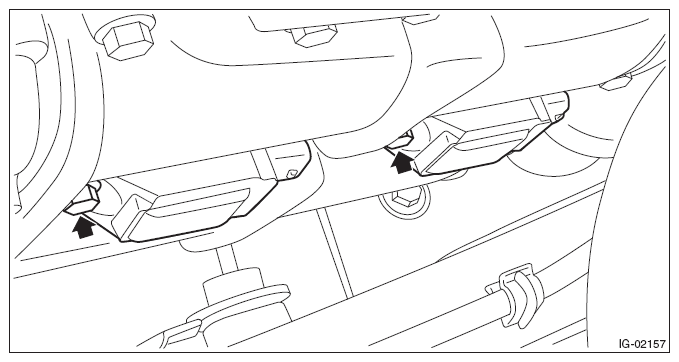

    Fig 2: Locating Ignition Coil Connector Bolts
    G08582787Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.
