Home >> Subaru >> 2013 >> Outback Base, Standard Trans >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls (Diagnostics) (H4DO) >> Electrical Component Location >> Location >> Control Module

Control Module

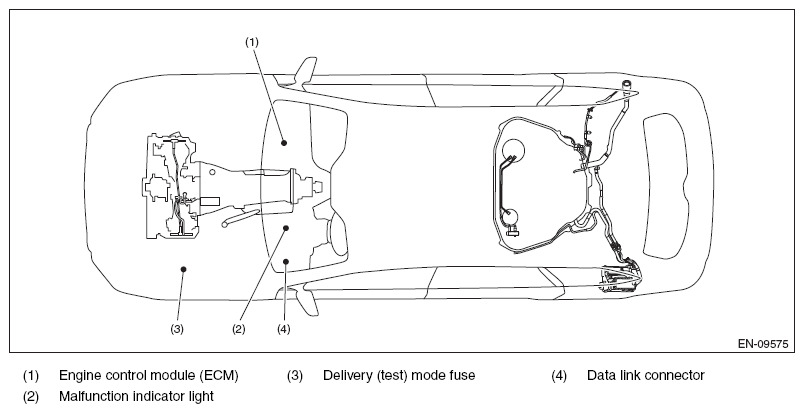

Fig 1: Control Module Electrical Components Location (1 Of 2)
G08580628Courtesy of SUBARU OF AMERICA, INC.

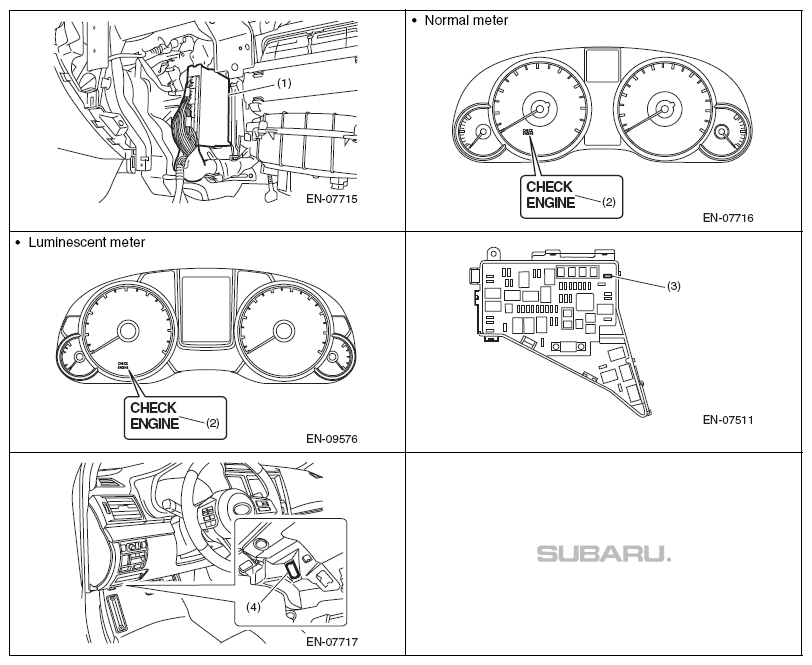

Fig 2: Control Module Electrical Components Location (2 Of 2)
G08580629Courtesy of SUBARU OF AMERICA, INC.
