Primary Speed Sensor: Removal

CAUTION: Be sure to prevent water or oil from contacting the connector terminal of primary speed sensor. If adhesion occurs, replace with a new part.
  1. Remove the transmission assembly. Refer to REMOVAL .
  2. Remove the primary speed sensor.

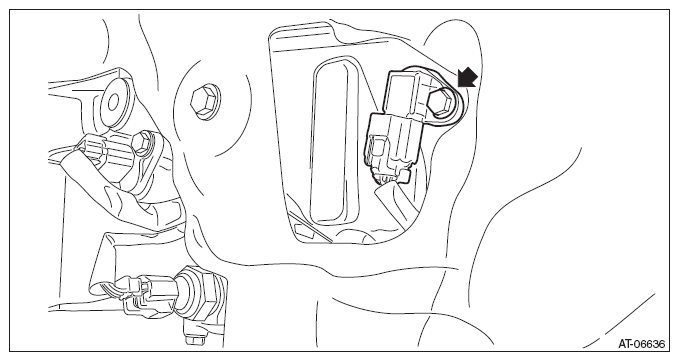

    Fig 1: Locating Primary Speed Sensor
    G08317803Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the harness connector from primary speed sensor.

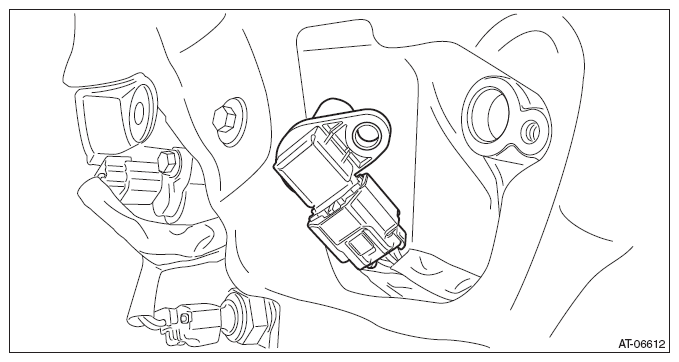

    Fig 2: Identifying Primary Speed Sensor Harness Connector
    G08317804Courtesy of SUBARU OF AMERICA, INC.
