Engine Control Module (ECM): Removal

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the back panel - pocket. < Refer to REMOVAL , Glove Box. >
Disconnect the connector from ECM.

Fig 2: Locating ECM Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clip, and push the tabs to remove the relay block.

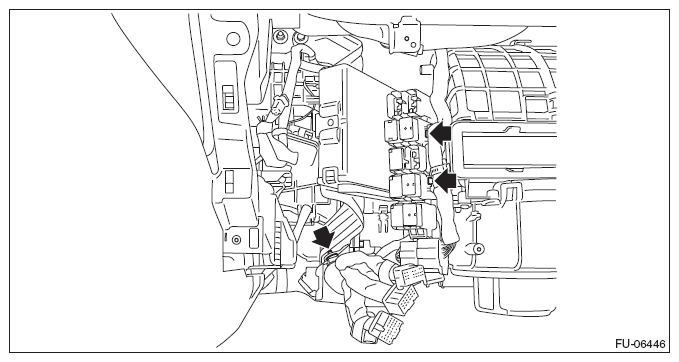

Fig 3: Locating Relay Block Tabs
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts and nuts, and remove the ECM.

Fig 4: Locating ECM Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
