Throttle Body

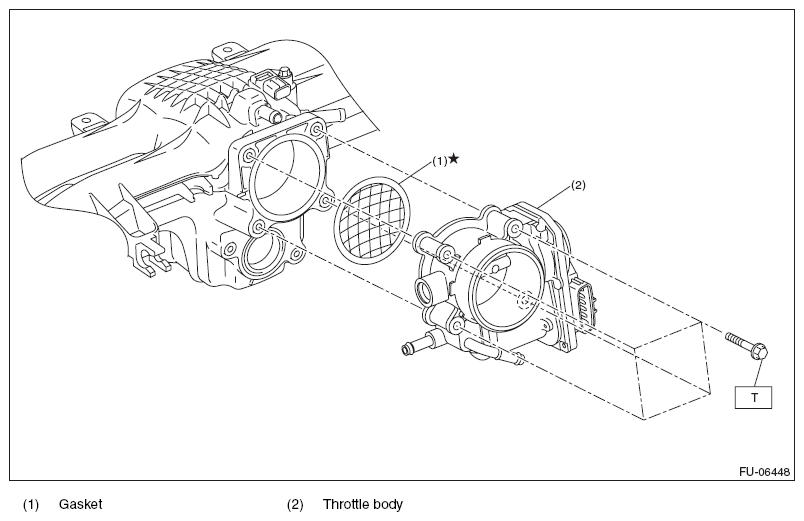

Fig 1: Gasket And Throttle Body With Torque Specifications

G08547303

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
