Lift And Jack

When using a lift or shop jack to raise a vehicle or using rigid rack to support a vehicle, always follow instructions concerning jack-up points and weight limits to prevent the vehicle from falling, which could result in injury. Be especially careful that the vehicle is balanced before raising it. Be sure to set the wheel stoppers when jacking-up only the front or rear side of the vehicle.

CAUTION: Select the lift attachment so that the side sill does not contact the lift arm.

NOTE:

When using a lift, follow its operation manual.
When the side sill cover contacts the lift arm, use a lift attachment.
Do not work or leave unattended while the vehicle is supported with jack, support it with rigid racks.
Be sure to use the rigid racks with rubber attached to cradle to support the vehicle.
When using a lift, use an attachment or something similar.
When using a plate lift, use a rubber attachment. Place the attachment to the specified position of the vehicle, by adjusting front/rear and left/right sides accordingly.

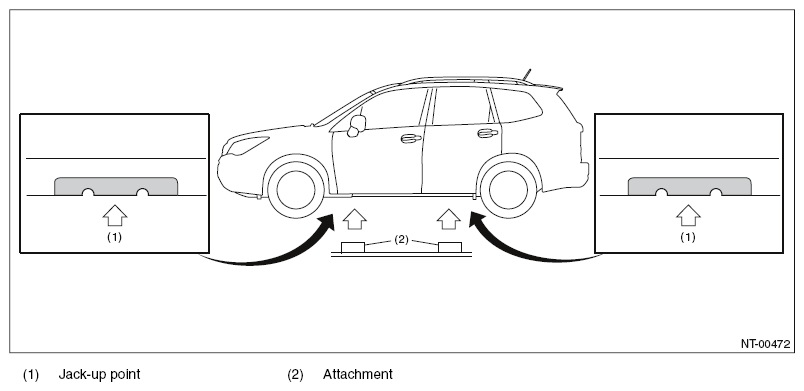

Fig 1: Identifying Lift And Jack Attachment Installation Position
Courtesy of SUBARU OF AMERICA, INC.
Align the cushion rubber center part of plate lift with the center part of rubber attachment.
Do not use the plate lift whose attachment does not reach the supporting locations.

Support locations

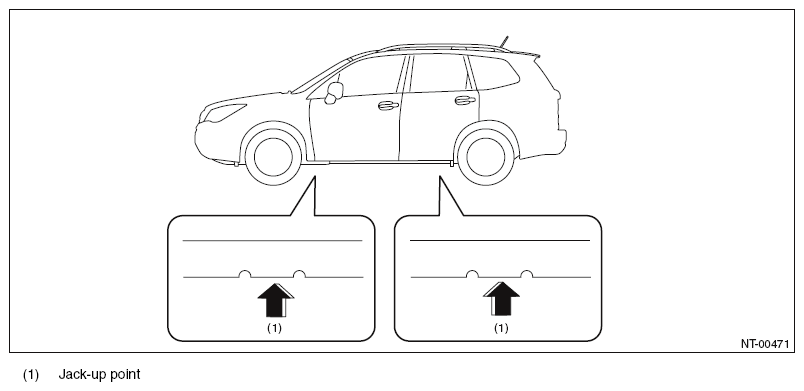

Fig 2: Locating Jack-Up Point Position
Courtesy of SUBARU OF AMERICA, INC.
Pantograph jack

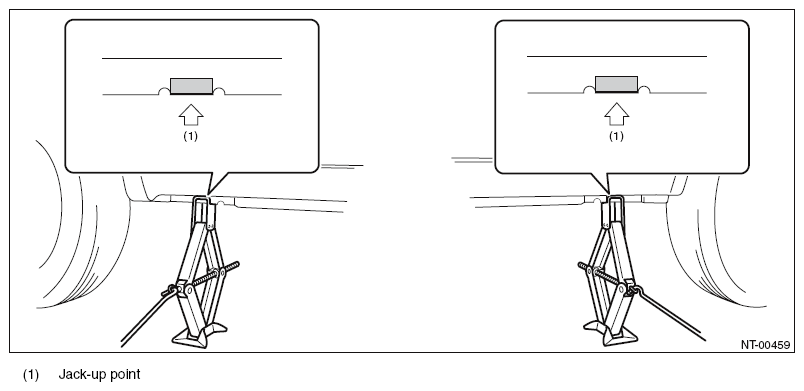

Fig 3: Lifting Vehicle Using Pantograph Jack
Courtesy of SUBARU OF AMERICA, INC.
Lift

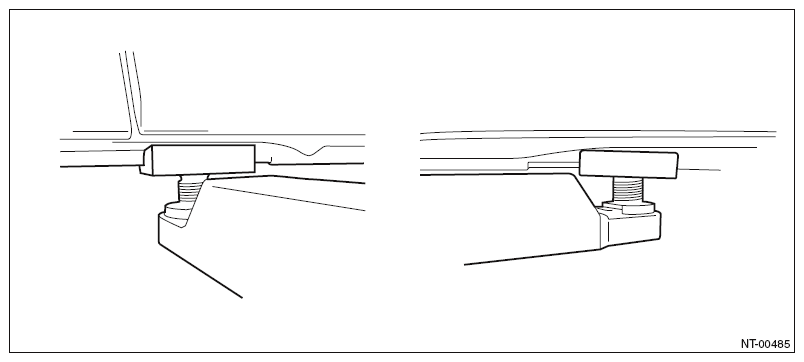

Fig 4: Lifting Vehicle Using Lift
Courtesy of SUBARU OF AMERICA, INC.

CAUTION: Depending on the type of the two-post lift, the door may contact the arm. In such a case, use the attachment of the regular option for the two-post lift.
Rigid rack

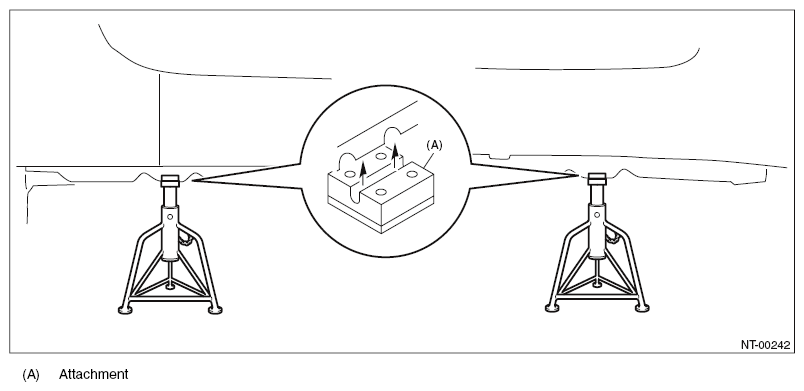

Fig 5: Lifting Vehicle Using Rigid Rack
Courtesy of SUBARU OF AMERICA, INC.
Plate lift

Fig 6: Identifying Jack-Up Point And Attachment
Courtesy of SUBARU OF AMERICA, INC.
Jack-up point (when using a garage jack)

CAUTION: If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the jack-up plate not at the sides.

Non-turbo model

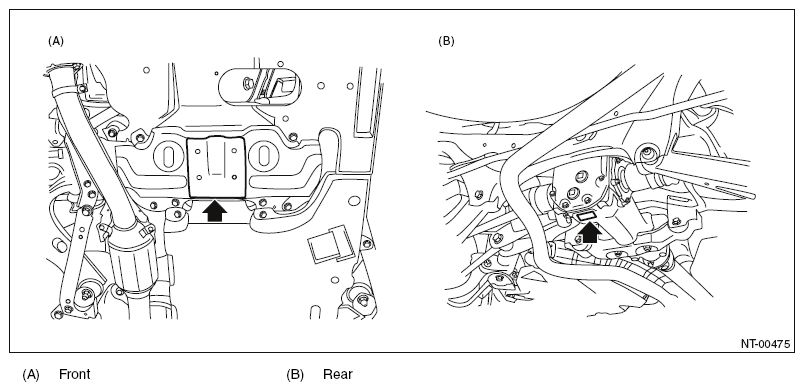

Fig 7: Locating Jack-Up Point (Non-Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.

Turbo model

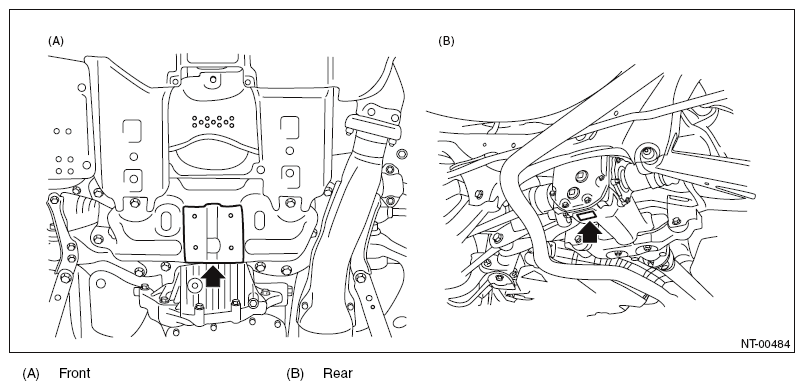

Fig 8: Locating Jack-Up Point (Turbo Model)

Courtesy of SUBARU OF AMERICA, INC.
