Engine Control Module (ECM): Removal

  1. Disconnect the ground cable from battery.

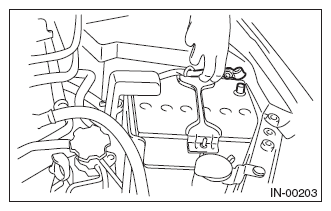

    Fig 1: Disconnecting Ground Cable From Battery
    G08538831Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the lower inner trim of passenger's side. < Refer to REMOVAL , Lower Inner Trim. >
  3. Turn over the floor mat of passenger's seat.
  4. Remove the protect cover.
    Fig 2: Locating Protecting Cover Mounting Screws
    G08538832Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the nuts and bolts which hold the ECM to the bracket.
    Fig 3: Locating ECM Mounting Nuts
    G08538833Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the ECM connectors, and take out the ECM.
