Knock Sensor: Removal

  1. Disconnect the ground cable from battery.

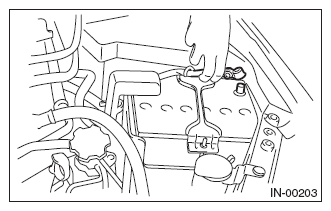

    Fig 1: Disconnecting Ground Cable From Battery
    G08538761Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intercooler. < Refer to REMOVAL , Intercooler. >
  3. Remove the intake manifold. < Refer to REMOVAL , Intake Manifold. >
  4. Remove the secondary air combination valve RH. < Refer to REMOVAL , Secondary Air Combination Valve. >
  5. Remove the knock sensor from cylinder block.
    Fig 2: Locating Knock Sensor
    G08538762Courtesy of SUBARU OF AMERICA, INC.
