Starting System & Charging System: Generator: Removal

Remove the collector cover.
Disconnect the ground cable from battery.
Disconnect the connector and terminal B from the generator, and remove the harness cover from the collector cover bracket.

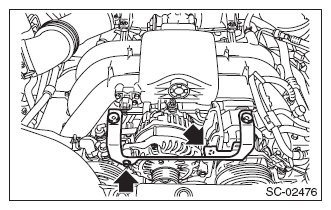

Fig 1: Identifying Generator Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove the V-belts. < Ref. to REMOVAL , V-belt. >
Remove the collector cover bracket.

Fig 2: Locating Collector Cover Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the generator.

Fig 3: Locating Generator Bolt
Courtesy of SUBARU OF AMERICA, INC.
