Engine Cooling System: Radiator: Installation

Install the radiator lower cushion.
Install the radiator to vehicle.
NOTE: Insert pins on the lower side of radiator into the radiator lower cushions on vehicle side.
Hold the ambient sensor harness with clip.

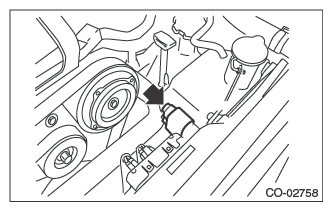

Fig 1: Locating Ambient Sensor Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Hold the radiator and condenser with bolts.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

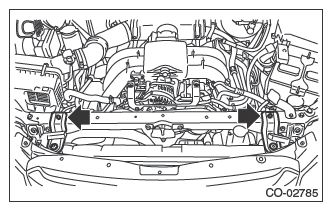

Fig 2: Locating Radiator And Condenser Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the front bumper. < Ref. to INSTALLATION , Front Bumper. >
Connect the ATF radiator inlet hose and ATF radiator outlet hose.
NOTE: Use a new ATF radiator inlet hose and ATF radiator outlet hose.

Fig 3: Identifying ATF Cooler Hose And Pipe
Courtesy of SUBARU OF AMERICA, INC.
Connect the radiator inlet hoses LH and RH.

Fig 4: Identifying Radiator Inlet Hoses LH And RH
Courtesy of SUBARU OF AMERICA, INC.
Install the reservoir tank.

Fig 5: Locating Reservoir Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to radiator fan control unit.

Fig 6: Locating Radiator Fan Control Unit Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the radiator stay.
1. Tighten the bolts on the right side of the radiator stay.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)

  Fig 7: Locating Radiator Stay Bolts (Right Side)
  Courtesy of SUBARU OF AMERICA, INC.
2. Tighten the bolts on the left side of the radiator stay.
  Tightening torque:

  18 N.m (1.8 kgf-m, 13.3 ft-lb)

  Fig 8: Locating Radiator Stay Bolts (Left Side)
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the front hood cable fixing clip to the radiator stay.
4. Install the radiator inlet hose LH to the clip.
5. Install the latch.
  Tightening torque:

  33 N.m (3.4 kgf-m, 24.3 ft-lb)

  Fig 9: Identifying Latch
  Courtesy of SUBARU OF AMERICA, INC.
Install the radiator upper brackets.
Tightening torque:

12 N.m (1.2 kgf-m, 8.9 ft-lb)

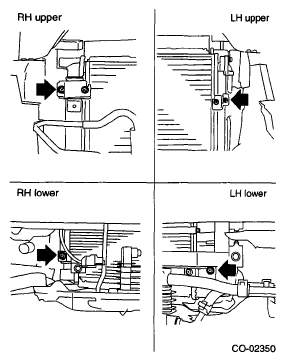

Fig 10: Locating Radiator Upper Brackets
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Connect the radiator outlet hose to the radiator lower.

Fig 11: Identifying Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts at the bottom of the radiator stay.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 12: Locating Underside Of Radiator Stay Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
Lower the vehicle.
Connect the battery ground terminal.
Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
Check the ATF level and replenish it if necessary. < Ref. to INSPECTION , Automatic Transmission Fluid. >
Install the front upper cover.

Fig 13: Identifying Front Upper Cover
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct. < Ref. to INSTALLATION , Air Intake Duct. >
Install the collector cover.
