Resonator Chamber: Disassembly

  1. Remove the clip which connects the resonator chamber and the air cleaner case (front).

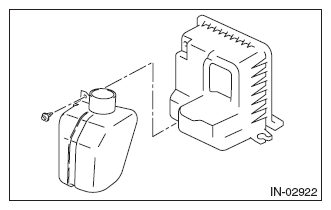

    Fig 1: Identifying Clip Connecting Resonator Chamber And Air Cleaner Case (Front)
    G07924626Courtesy of SUBARU OF AMERICA, INC.
  2. Separate the resonator chamber and the air cleaner case (front).
