Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P060A Internal Control Module Monitoring Processor Performance
>>
Component Description
Component Description

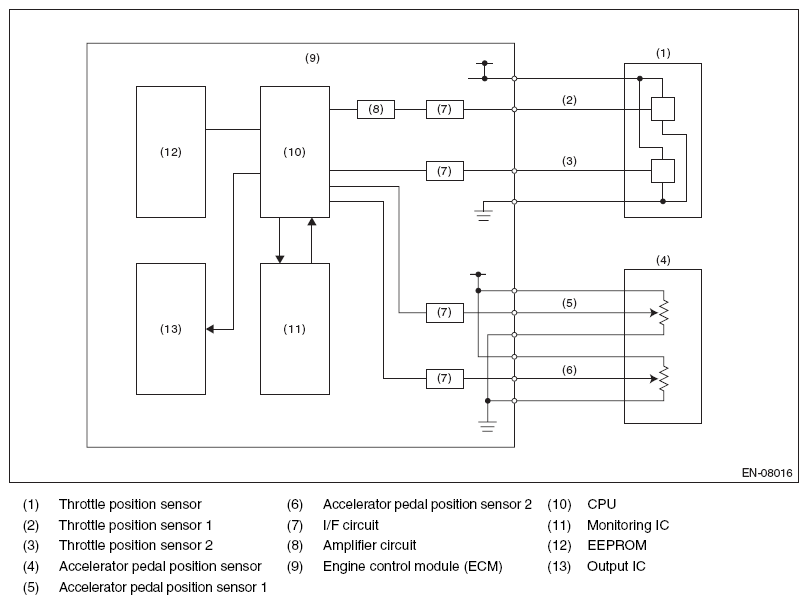

Fig 1: Internal Control Module Monitoring Processor - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
