Main Switch

  1. Remove the trim panel - front door. < Ref. to FRONT DOOR , REMOVAL, Door Trim. >
  2. Remove the panel - power window main switch.
    CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
    1. Remove the screws and disconnect the connector.
      Fig 1: Locating Power Window Main Switch Panel And Mounting Screws
      G09484433Courtesy of SUBARU OF AMERICA, INC.
    2. Release the claws, and then remove the panel - power window main switch.

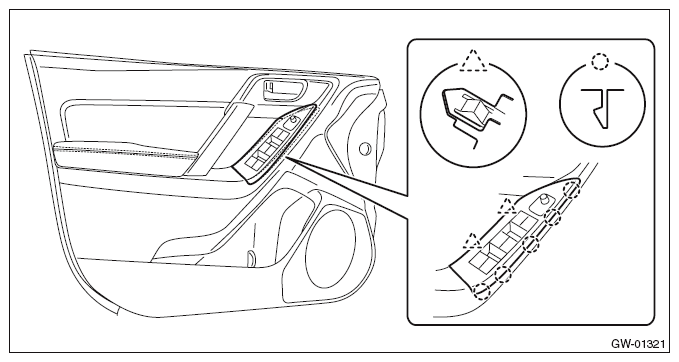

      Fig 2: Locating Power Window Main Switch Panel Claws
      G09484434Courtesy of SUBARU OF AMERICA, INC.
    3. Release the claws, and then remove the switch - power window main.
      Fig 3: Locating Power Window Main Switch Claws
      G09484435Courtesy of SUBARU OF AMERICA, INC.
