Fuel Injector: Replacement

ST 18683AA000 INSTALLER INJECTOR SEAL

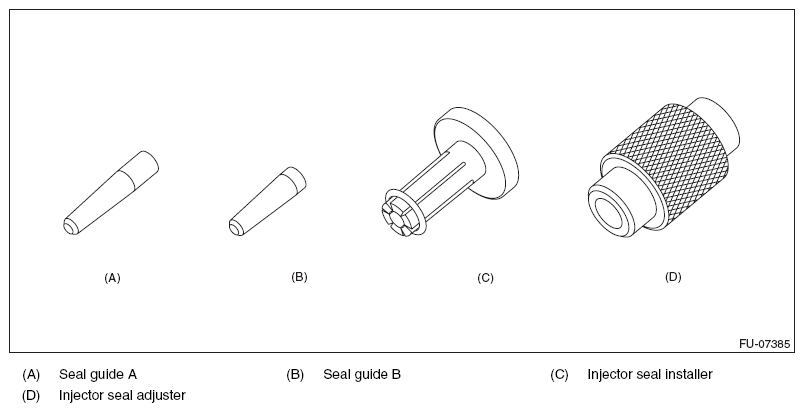

Fig 1: Identifying Seal Guide A And B, Injector Seal Installer And Injector Seal Adjuster

Courtesy of SUBARU OF AMERICA, INC.

1. Using a pair of nippers, cut off the injector seal by pinching it.
   CAUTION: Be careful not to damage the fuel injector.
   Fig 2: Cutting Injector Seal

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the O-ring and backup ring from the fuel injector.
   Fig 3: Removing O-Ring And Backup Ring From Fuel Injector

   Courtesy of SUBARU OF AMERICA, INC.
3. Attach the seal guide A to the fuel injector.
   NOTE: Two types of seal guides are provided. So, do not mix up the type to be used.
   Fig 4: Attaching Seal Guide A To Fuel Injector

   Courtesy of SUBARU OF AMERICA, INC.
4. Set the injector seal to the injector seal installer.
   Fig 5: Locating Injector Seal

   Courtesy of SUBARU OF AMERICA, INC.
5. Push in the injector seal installer slowly in the direction of the arrow, and attach the injector seal to the fuel injector.
   CAUTION:

   • Insert the injector seal straight into the fuel injector.
   • Install the injector seal so that it does not go beyond the fuel injector groove.
   Fig 6: Inserting Injector Seal Straight Into Fuel Injector

   Courtesy of SUBARU OF AMERICA, INC.
6. While rotating the injector seal adjuster to left and right by 90° for each side, slowly insert it all the way.
   NOTE:

   • Apply a thin coat of gasoline to the injector seal and injector seal adjuster.
   • With the injector seal adjuster fully inserted, rotate it to left and right approx. ten times by 90° for each side to normalize the injector seal.
   Fig 7: Installing Injector Seal Adjuster

   Courtesy of SUBARU OF AMERICA, INC.
7. Attach the seal guide B to the fuel injector.
   NOTE: Two types of seal guides are provided. So, do not mix up the type to be used.
   Fig 8: Attaching Seal Guide B To Fuel Injector

   Courtesy of SUBARU OF AMERICA, INC.
8. Set the injector seal to the injector seal installer.
   Fig 9: Locating Injector Seal

   Courtesy of SUBARU OF AMERICA, INC.
9. Push in the injector seal installer slowly in the direction of the arrow, and attach the injector seal to the fuel injector.
   CAUTION:

   • Insert the injector seal straight into the fuel injector.
   • Install the injector seal so that it does not go beyond the fuel injector groove.
   Fig 10: Inserting Injector Seal Straight Into Fuel Injector

   Courtesy of SUBARU OF AMERICA, INC.
10. While rotating the injector seal adjuster to left and right by 90° for each side, slowly insert it all the way.
    NOTE:

    • Apply a thin coat of gasoline to the injector seal and injector seal adjuster.
    • With the injector seal adjuster fully inserted, rotate it to left and right approx. ten times by 90° for each side to normalize the injector seal.
    Fig 11: Checking Injector Seal Adjuster Fully Inserted

    Courtesy of SUBARU OF AMERICA, INC.
11. Attach two backup rings and O-ring to the fuel injector.
    NOTE: Use new backup rings and O-ring.

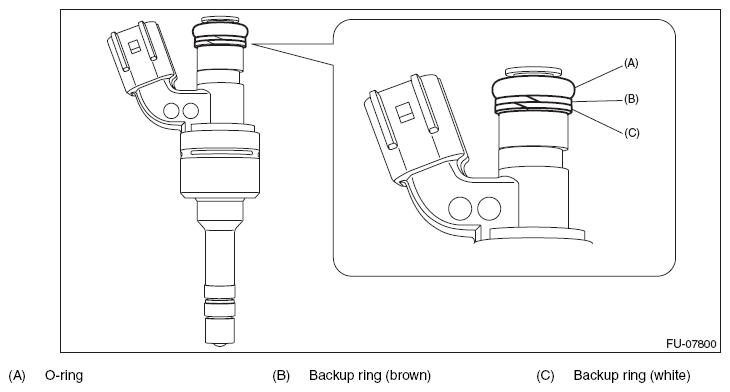

    Fig 12: Identifying O-Ring, Backup Ring (Brown And White)

    Courtesy of SUBARU OF AMERICA, INC.
