Home >> Subaru >> 2015 >> Outback 2.5i >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (H4DO) >> Electronic Throttle Control Relay >> Removal

Electronic Throttle Control Relay: Removal

  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the electronic throttle control relay from the main fuse box.

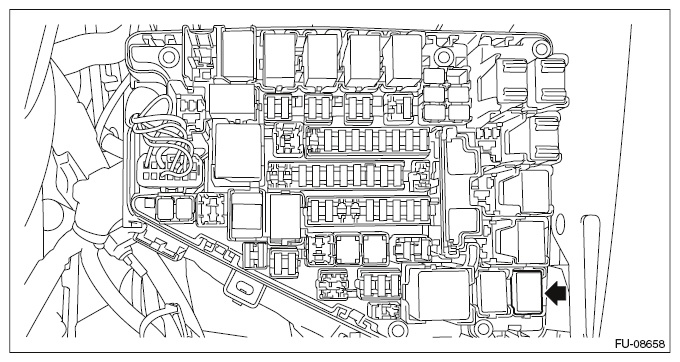

    Fig 1: Locating Electronic Throttle Control Relay
    G10262213Courtesy of SUBARU OF AMERICA, INC.
