Front Disc Brake Assembly: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Lift up the vehicle, and then remove the front wheels.
Remove the union bolt and the caliper bolt, and remove the caliper body assembly.
CAUTION:
- Do not allow brake fluid to come in contact with the painted surface of the vehicle body. If it does, wash off with water and wipe away completely.
- Prepare a container to catch grease or oil, etc. If any grease or oil spills, wipe it off and clean immediately to prevent from penetrating into floor or flowing outside.

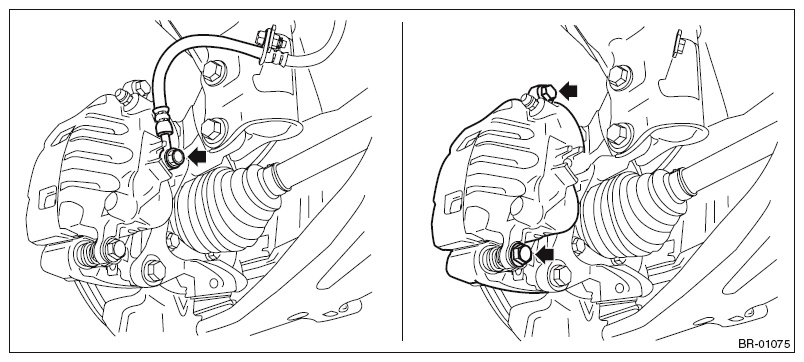

Fig 1: Locating Caliper Body Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the support - front disc brake.
1. Remove the pad - disc brake front.

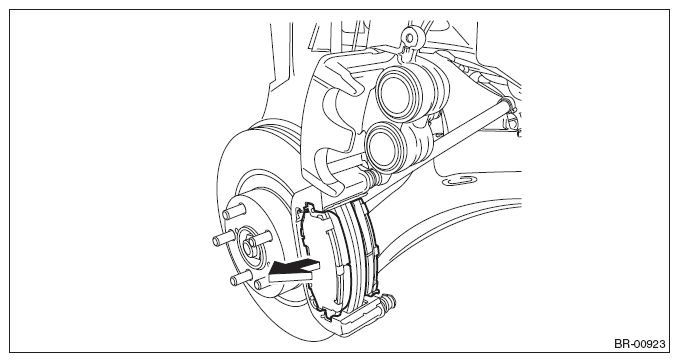

  Fig 2: Removing Disc Brake Front Pad
  Courtesy of SUBARU OF AMERICA, INC.
2. Remove the mounting bolts, and then remove the support - front disc brake.

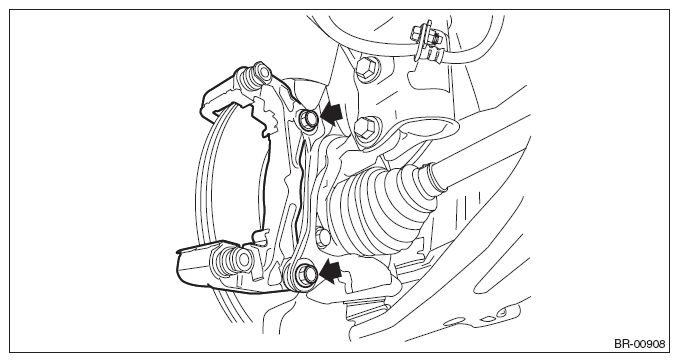

  Fig 3: Locating Front Disc Brake Support Mounting Bolts
  Courtesy of SUBARU OF AMERICA, INC.
