Front Disc Brake

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

16-inch

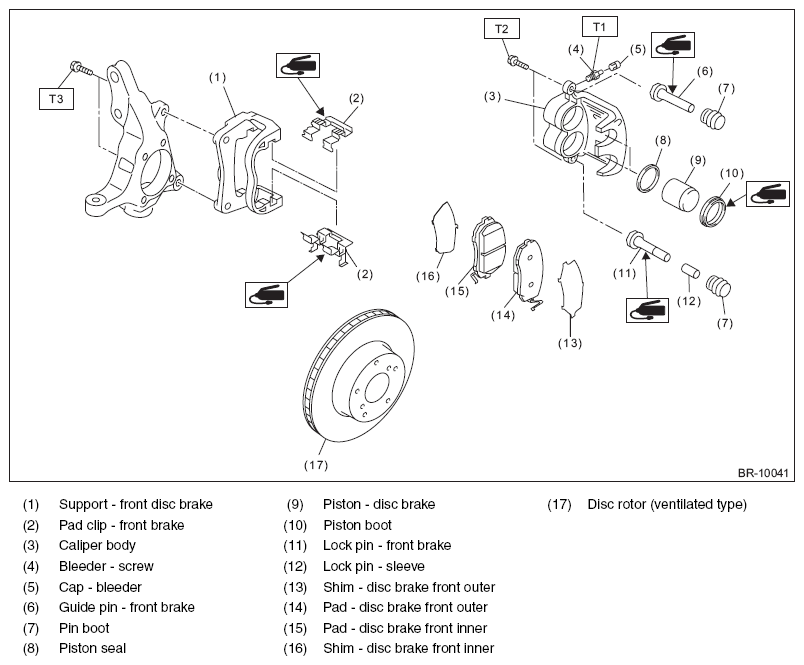

Fig 1: Identifying Front Disc Brake Related Components With Torque Specification (16-Inch)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 50 (5.1, 36.9)

T3: 120 (12.2, 88.5)

17-inch

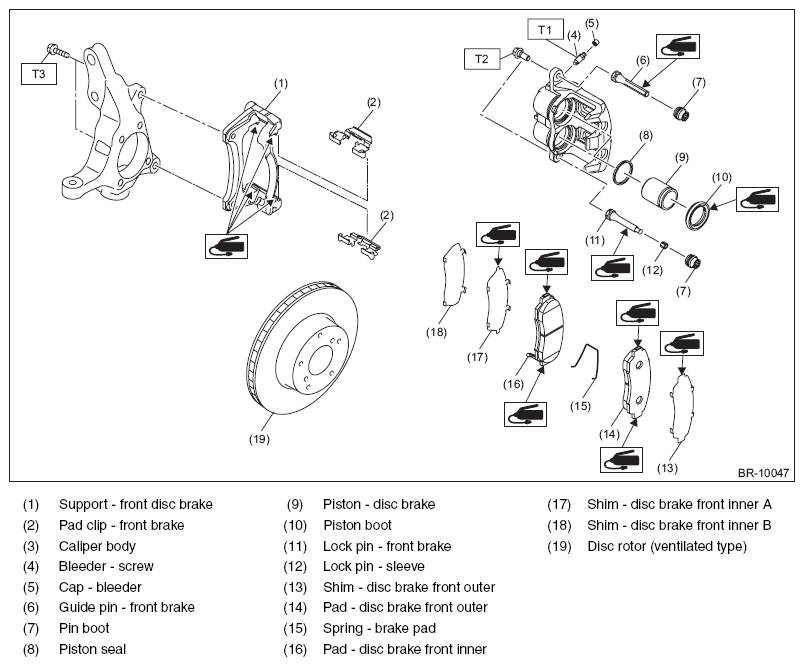

Fig 2: Identifying Front Disc Brake Related Components With Torque Specification (17-Inch)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.8, 5.9)

T2: 27 (2.8, 20.3)

T3: 120 (12.2, 88.5)
