Outback Model

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the trim panel - rear gate. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the garnish assembly - rear gate. < Ref. to REMOVAL , Rear Gate Garnish. >
  4. Remove the rearview camera assembly.
    CAUTION: Do not drop or apply any impact to the rearview camera because it is a precision equipment.
    1. Disconnect the connector.
    2. Release the claw and hook, and then remove the rearview camera assembly.

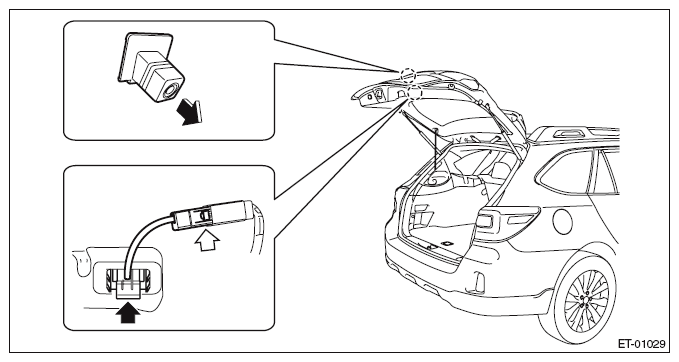

      Fig 1: Releasing Claw And Hook Of Rearview Camera Assembly - Outback Model
      G10272669Courtesy of SUBARU OF AMERICA, INC.
