System Block Diagram

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

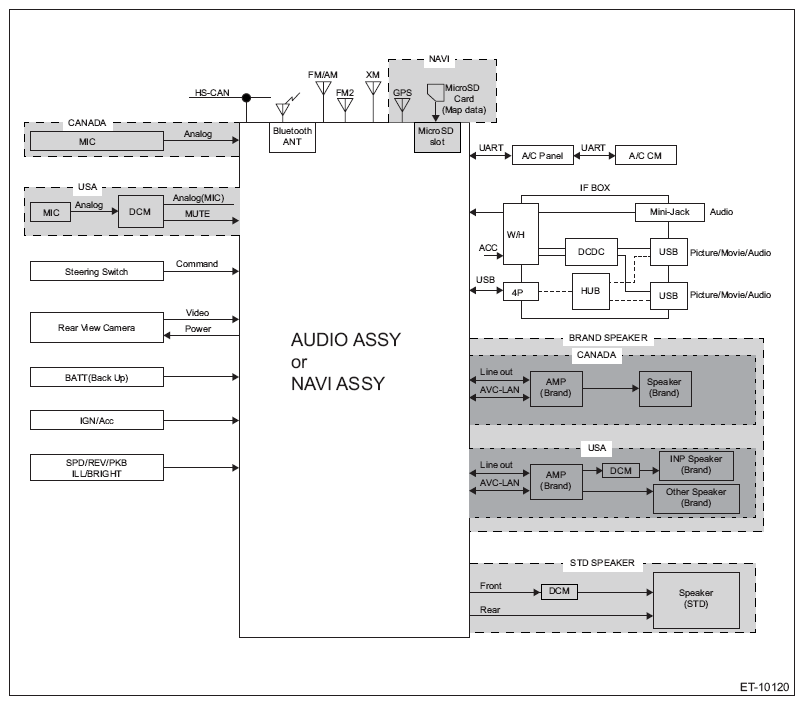

Fig 1: Audio And Navigation Assembly System Block Diagram
G10309186Courtesy of SUBARU OF AMERICA, INC.
