Outer Mirror Assembly: Assembly

Engage the claws into the hole and install the cover - cap outer mirror.

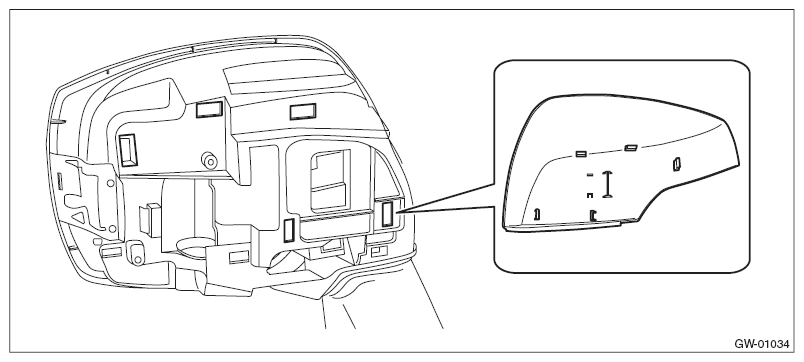

Fig 1: Identifying Outer Mirror Cap Cover Claws
Courtesy of SUBARU OF AMERICA, INC.
Engage the claws into the hole and install the cover - cap outer mirror lower.

Fig 2: Identifying Outer Mirror Cap Cover Claws (Lower)
Courtesy of SUBARU OF AMERICA, INC.
Check that all the claws are securely engaged.
Install the mirror - repair in the reverse order of removal.

CAUTION: Be sure to insert the connector and clips securely.
