Main Switch

  1. Remove the trim panel - front door. < Ref. to FRONT DOOR , REMOVAL, Door Trim.>
  2. Remove the panel - power window main switch.
    CAUTION: Be careful not to damage the trim panel - front door with the panel - power window main switch.
    1. Insert a sheet of protective paper (a) between panel - power window main switch and trim panel - front door.
    2. Remove the screws and disconnect the connector.

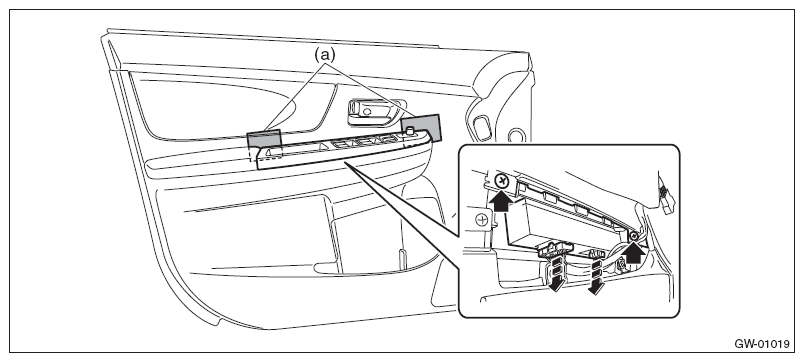

      Fig 1: Removing Power Window Control Switch Connector
      G08315134Courtesy of SUBARU OF AMERICA, INC.
    3. Release the claws, and then remove the panel - power window main switch.
      Fig 2: Removing Power Window Control Switch Panel
      G08315135Courtesy of SUBARU OF AMERICA, INC.
    4. Release the claws, and then remove the switch - power window main.

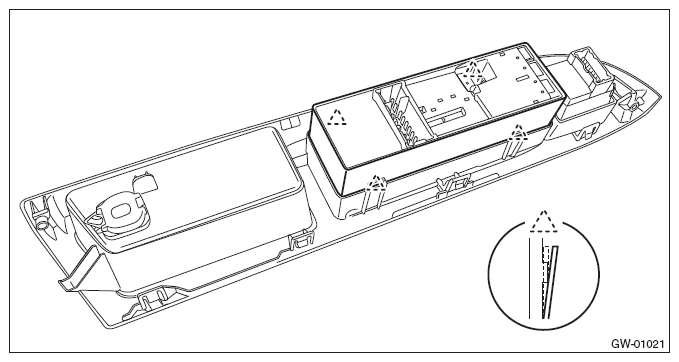

      Fig 3: Identifying Power Window Control Switch Panel Claws
      G08315136Courtesy of SUBARU OF AMERICA, INC.
