LH Side

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note.>
    NOTE: For the 12 volt engine restart battery of HEV model, disconnect the ground terminal from 12V engine restart battery sensor.
  2. Disconnect the connector from ignition coil.
  3. Remove the ignition coil.

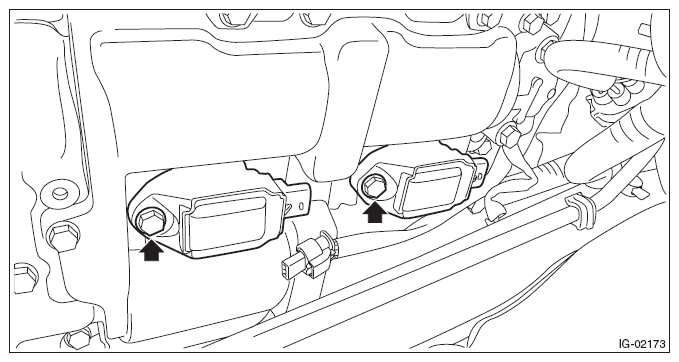

    Fig 1: Locating Connector From Ignition Coil
    G08550397Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the spark plug with a spark plug socket.
