Fuel Pump Assembly (Fa20)
>>
Exploded View
Exploded View

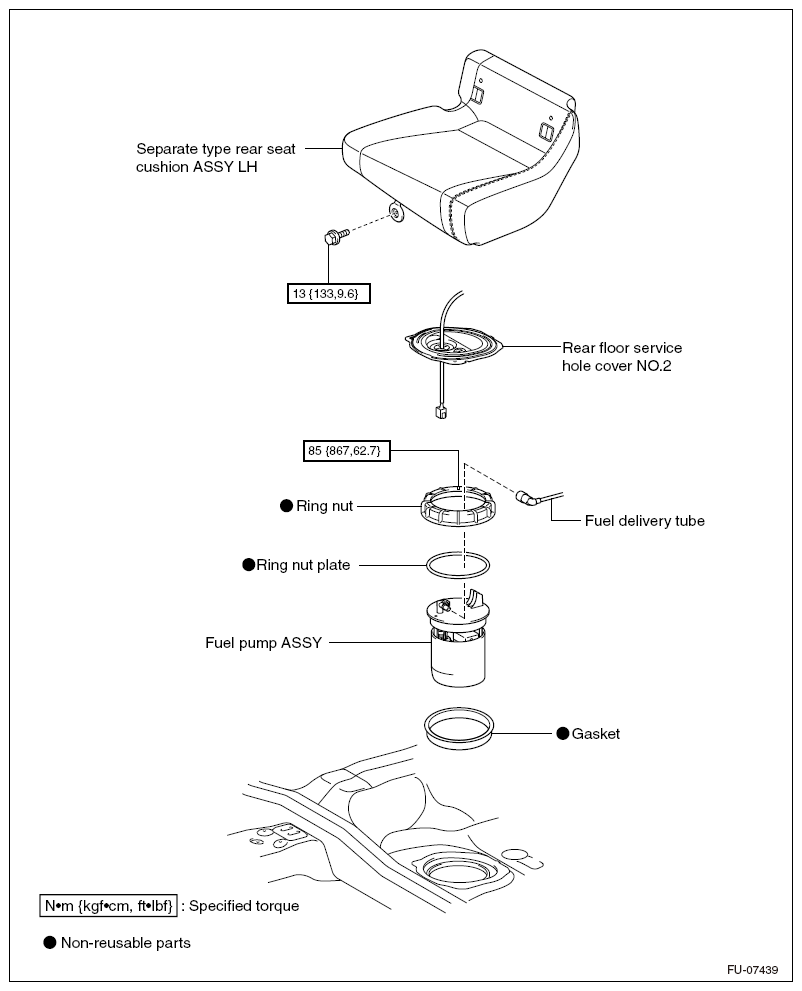

Fig 1: Exploded View Of Fuel Pump Assembly With Torque Specifications (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

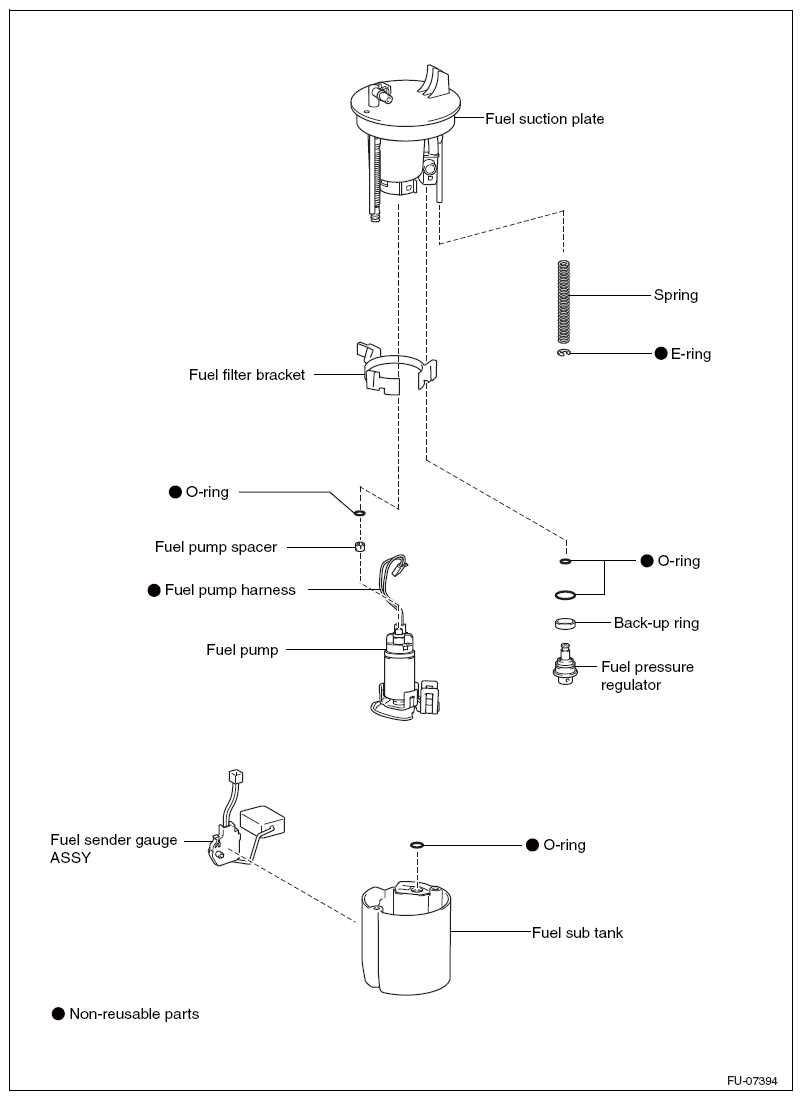

Fig 2: Exploded View Of Fuel Pump Assembly (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
