Injector Assembly (Fa20/Direct Fuel Injection)
>>
Exploded View
Exploded View

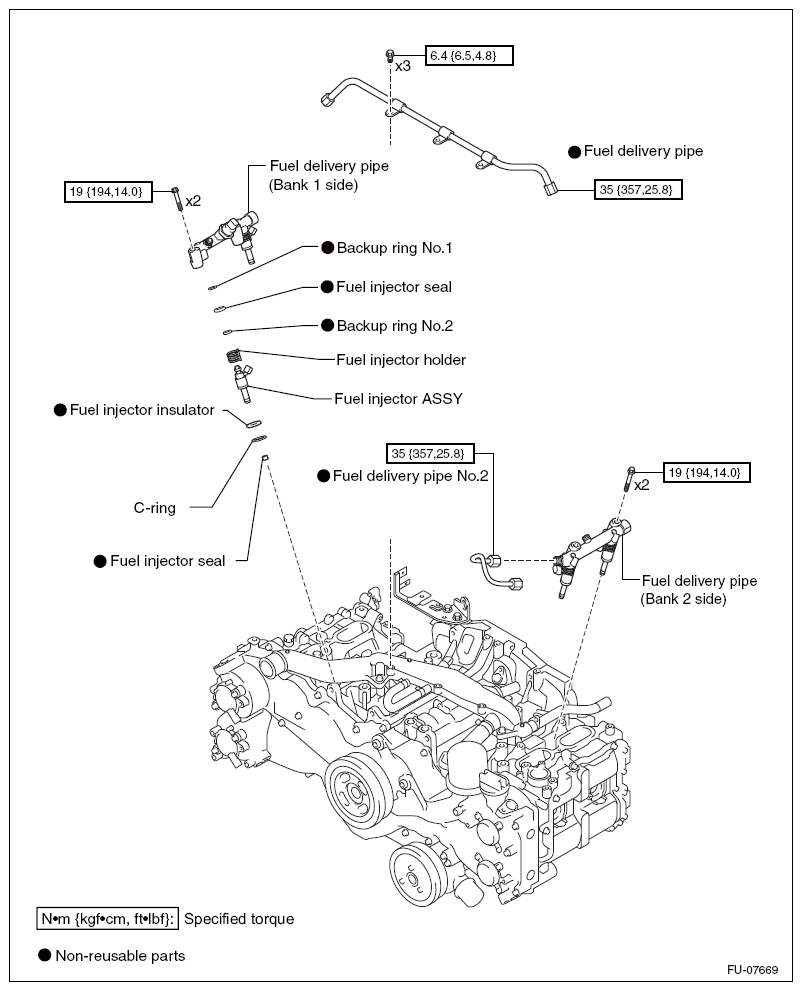

Fig 1: Exploded View Of Injector Assembly With Torque Specifications (FA20/Direct Fuel Injection)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
