Front Speed Sensor: Removal

NOTE: The following procedure is for LH side. Perform the same procedures both for the LH side and RH side, unless otherwise specified.

Removal of front tire
Removal of front mud guard LH (Refer to WASHER MOTOR )
Removal of speed sensor FR LH
1. Disconnect the connector.
2. Disconnect 6 clamps.

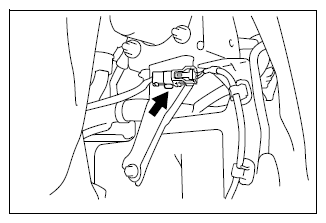

  Fig 1: Locating Speed Sensor FR LH
  Courtesy of SUBARU OF AMERICA, INC.

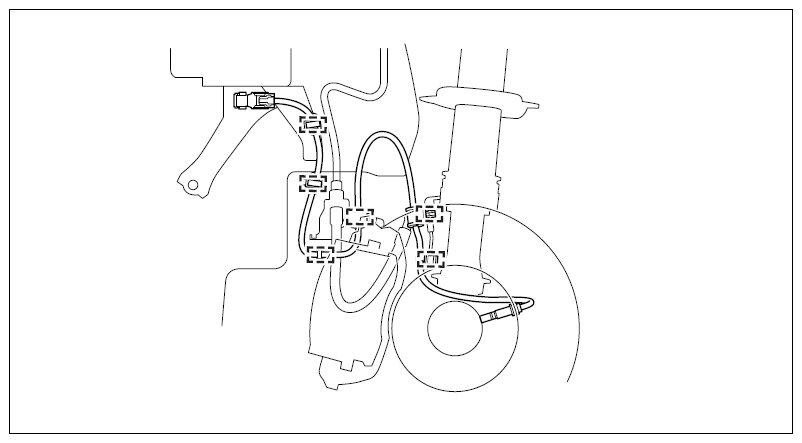

  Fig 2: Locating Speed Sensor FR LH Clamps
  Courtesy of SUBARU OF AMERICA, INC.
3. Remove the bolt and the speed sensor FR LH.
  CAUTION: Do not let foreign matter stick to the installation part and the tip of the speed sensor FR LH.

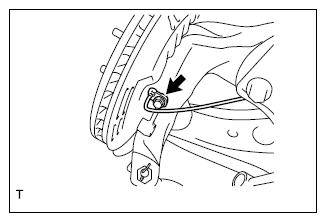

  Fig 3: Locating Speed Sensor FR LH Bolt
  Courtesy of SUBARU OF AMERICA, INC.
