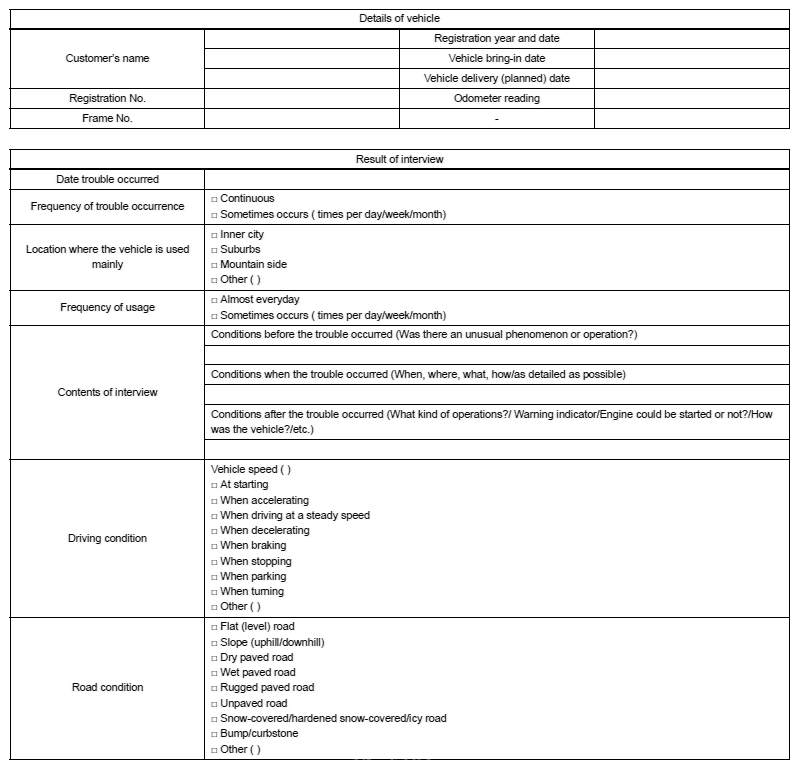

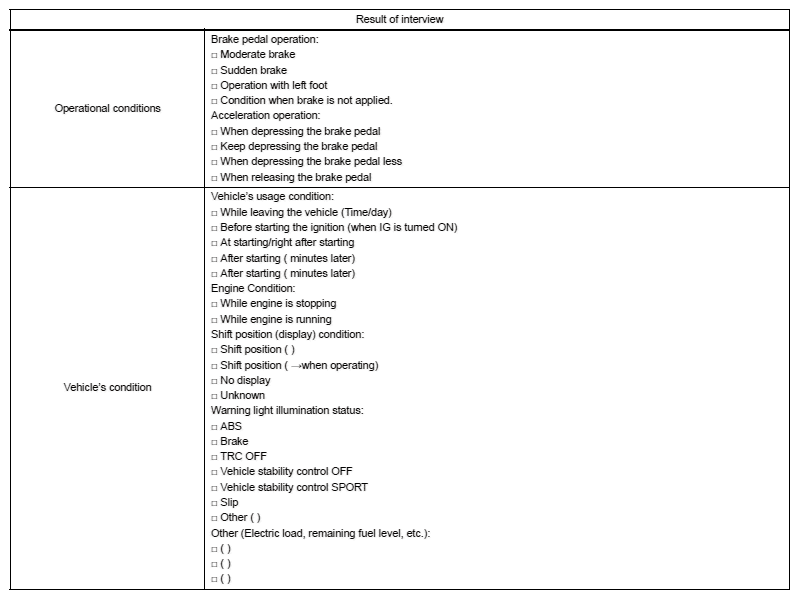

Check List For Interview
Diagnostic codes
DIAGNOSTIC CODES LIST
| ABS/Vehicle stability control system | Output code |
|---|---|
| 1st | |
| 2nd | |
| th time | |
| Diagnostic code except for ABS/Vehicle stability control system |
Freeze frame data
FREEZE FRAME DATA
| Item name | Recorded value | Unit | ||
|---|---|---|---|---|
| Time elapsed after the system froze | msec | |||
| Number of turning IG ON after the system froze | - | |||
| Stop light switch | OFF/ON | - | ||
| Gear position information(1) | Unknown/Lo/2nd/3rd/4th/5th/6th/P, N/R | - | ||
| System in operation | ABS/VSC/TRC/HBA | - | ||
| Yaw rate sensor | °/s | |||
| Lateral G sensor | m/s2 | |||
| Longitudinal G sensor | m/s2 | |||
| Wheel speed FR | km/h | |||
| Wheel speed FL | km/h | |||
| Wheel speed RR | km/h | |||
| Wheel speed RL | km/h | |||
| Accelerator pedal opening rate | % | |||
| Steering angle sensor | ° | |||
| TRC/VSC OFF mode | Normal/TRC OFF/VSC OFF | - | ||
| VSC SPORT mode | Normal/SPORT mode | - | ||
|
||||
