On-Vehicle Inspection

  1. ST relay check
    1. Check the resistance between relay connector terminals.

      Resistance

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C 93.8 to 136.4Ω
      3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
      When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω

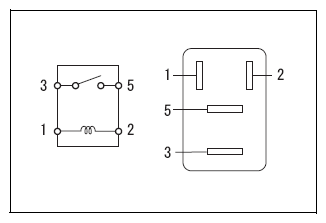

      Fig 1: Checking ST Relay
      G10214144Courtesy of SUBARU OF AMERICA, INC.
  2. Inhibitor Relay Check
    1. Check the resistance between relay connector terminals.

      Resistance

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C 93.8 to 136.4Ω
      3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
      When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω

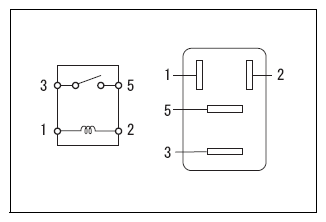

      Fig 2: Checking Inhibitor Relay
      G10214145Courtesy of SUBARU OF AMERICA, INC.
  3. ST CUT relay check (with smart key system)
    1. Check the resistance between relay connector terminals.

      Resistance

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C 93.8 to 136.4Ω
      3 - 4 When the battery voltage is not applied to the terminal 1 and terminal 2: Less than 1 Ω
      When the battery voltage is applied to the terminal 1 and terminal 2: 10 k Ωor more
      3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
      When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω

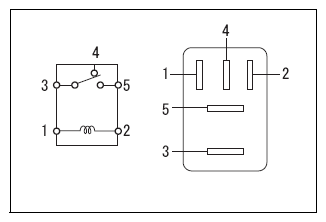

      Fig 3: Checking ST CUT Relay
      G10214146Courtesy of SUBARU OF AMERICA, INC.
  4. IGS relay check (with smart key system)
    1. Check the resistance between relay connector terminals.
      Fig 4: Checking IGS Relay
      G10214147Courtesy of SUBARU OF AMERICA, INC.

      Resistance

      Inspection terminals Inspection conditions Standard value
      1 - 2 20°C 93.8 to 136.4Ω
      3 - 5 When the battery voltage is not applied to the terminal 1 and terminal 2: 10 k Ωor more
      When the battery voltage is applied to the terminal 1 and terminal 2: Less than 1 Ω
