Ignition Coil And Spark Plug (Fa20)
>>
Exploded View
Exploded View

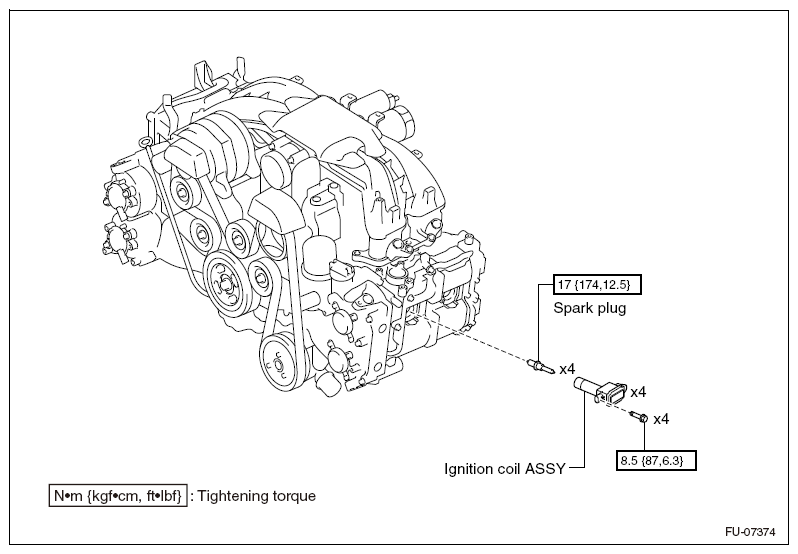

Fig 1: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: Exploded View Of Ignition Coil And Spark Plug With Torque Specifications (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
